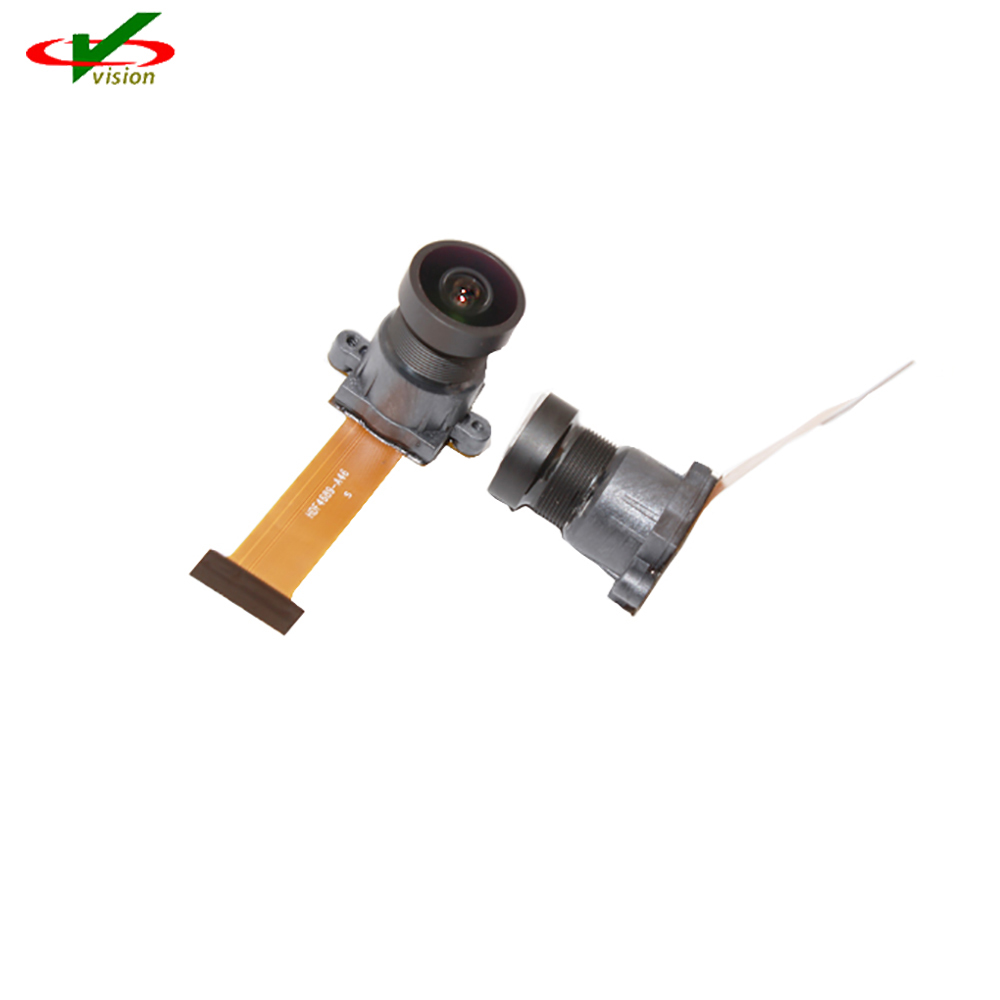

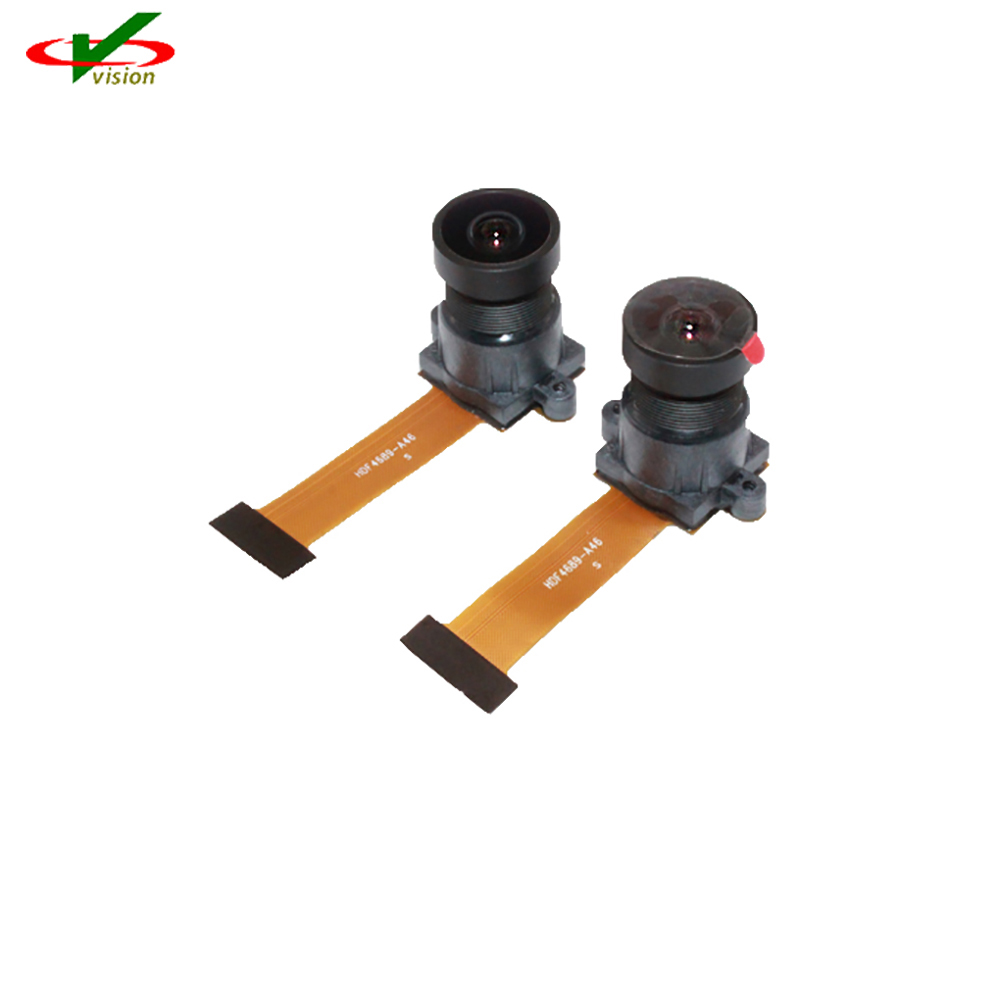

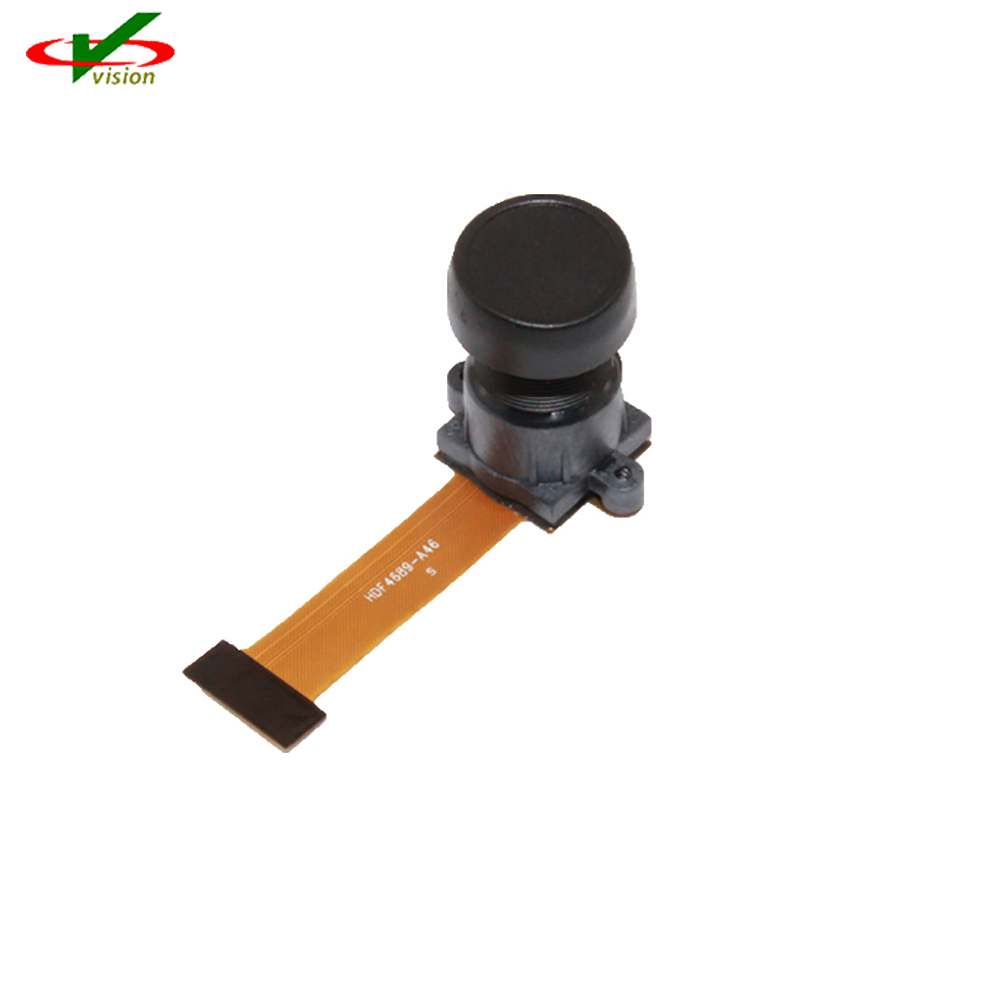

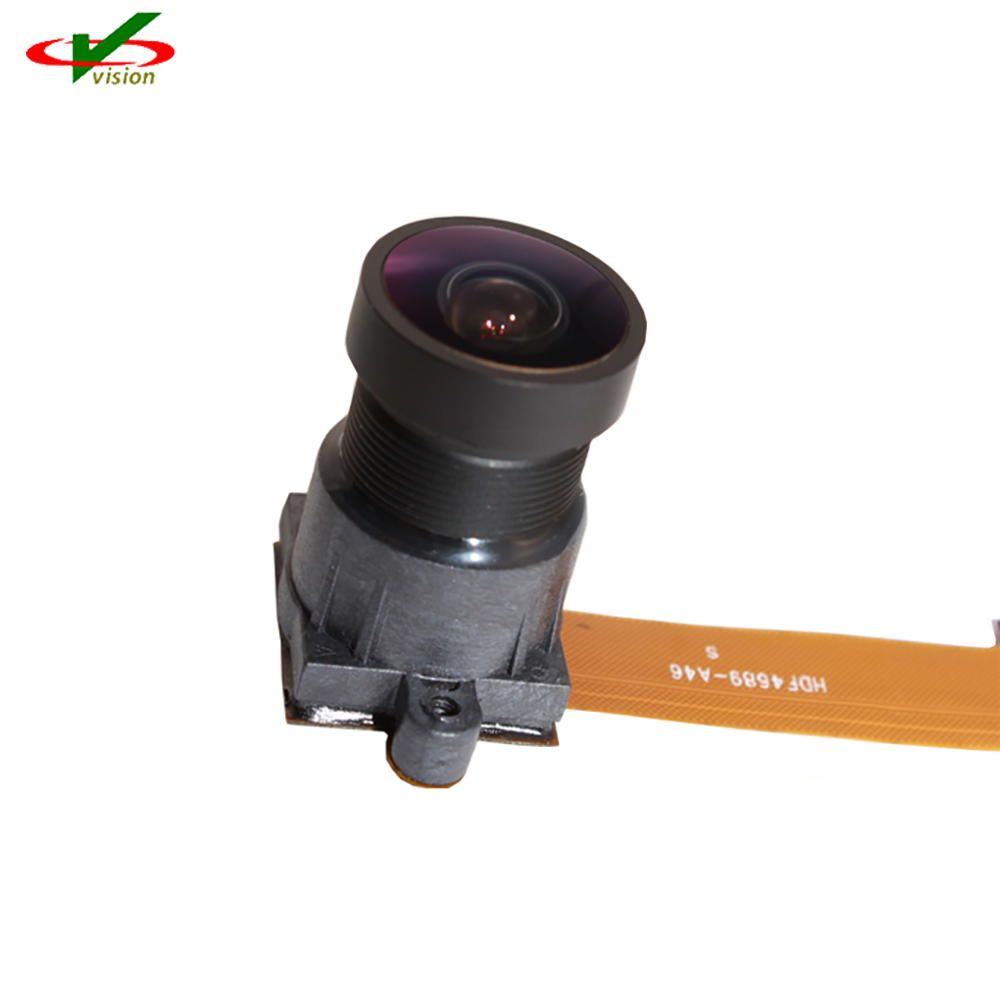

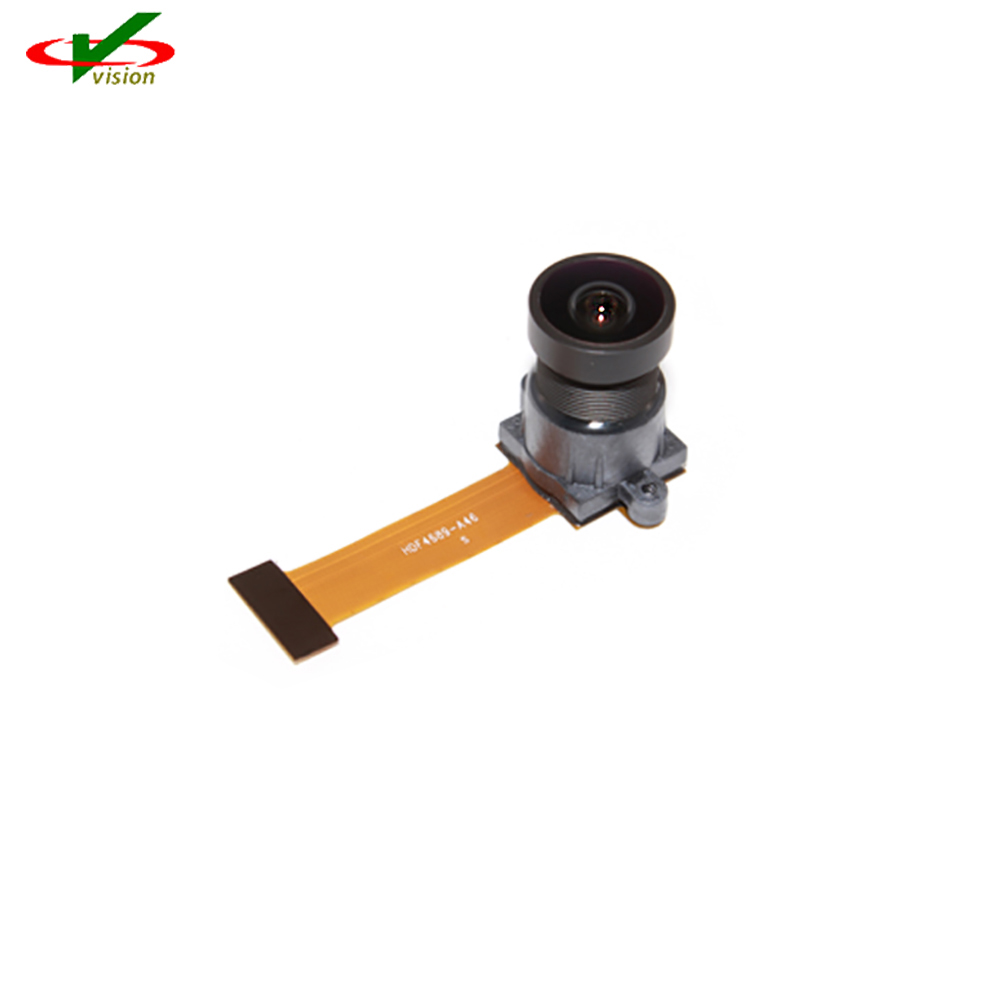

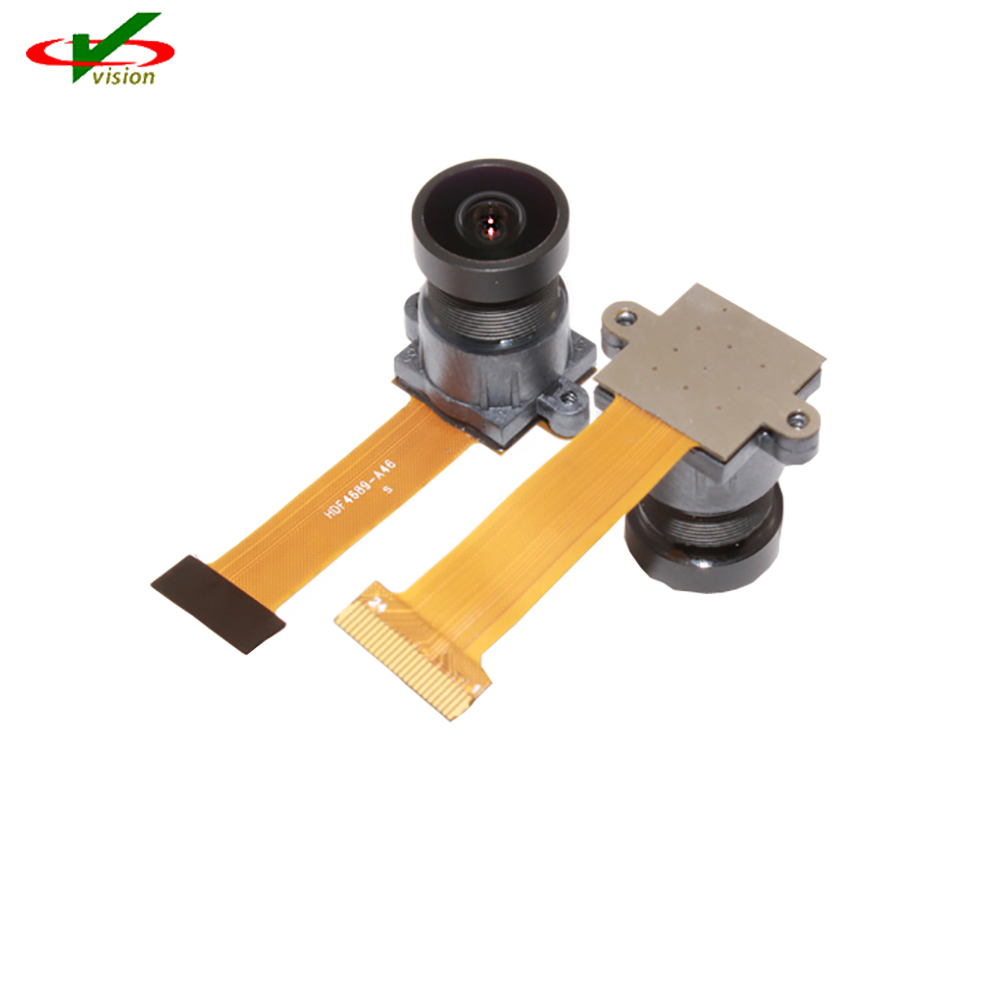

4MP 2K MIPI Camera Sensor Module notat summus velocitas 4-lane MIPI Vide output interfaciendi ad faciliorem datam transferendi rate altam requisitam. Ov4689 in sarcina scalae chippis praesto est (csp).
Alta Frame Rate 4MP 2K MIPI Camera Sensor Module habet Praeclaram Low-lucem Sensorem et Maximum Dynamic Range pro Applications Securitatis.
4MP 2K MIPI Camera Sensoris Module summus effectus est 4-megapixel camerachip sensoris in indigena 16:9 formato destinata ad proximam generationem custodias et systemata securitatis. Sensor proficit 2-micron OmniBSITM-2 pixel provectae ad optimam in-classem humilem levium sensibilitatem et altam dynamicam extensionem (HDR).
latae calibrationis gradu nigro (ABLC)
programmabilia moderamina pro rate, speculo et filp, tondentes, et windowing
static deficiens pixel distrahens
● supports output formats: 10-bit RGB INCOCTUS (MIPI)
subsidia horizontali et verticali subsampling
● imagines magnitudines sustinet: 4Mpixel, 3Mpixel, EIS1080p, 1080p, EIS720p
ieiunium modus mutandi
subsidium 2x2binning, 4x4binning, re-sampling filter
vexillum Vide SCCB interface
● usque ad 4-lane MIPI Vide output interface
embedded 4K frena unum tempus programmabile (OTP) memoria pro parte identitatis, etc.
duo in-chip tempus cincinno loramenta (PLLs)
programmable EGO / O facultatem coegi
, constructum in temperatus sensorem
IP cameras
Sports cameras
Automotive
| Active ordinata magnitudine | 2688 x 1520 | |
| Potentia copia | core | 1.1~1.3V |
| analogon | 2.6~3.0V | |
| I/O* | 1.7~3.0V | |
| Potentia requisita | active | 163mA(261mW) |
| standby | 1mA | |
| XSHUTDOWN | <10μA | |
| Temperatus range | operans | -30℃ ad +85℃ |
| firmum imaginem | 0℃to +50℃ | |
| Output formats | X frenum INCOCTUS | |
| Lens magnitudine | 1/3" | |
| Input horologium frequentia | 6~64 MHz | |
| Maximum imaginem transfer rate |
2688x1520 | 90fps |
| 1280x720 | 180 fps | |
| 1920x1080 | 120 fps | |
| 672x380 | 330fps | |
| Sensibilitas | 1900mV/lux-sec | |
| Scan modus | progressivum | |
| Magnitudo pixel: | 2μm x 2μm | |
| Imago area | 5440 μm x 3072 μm | |
| Sarcina dimensiones | 6630 μm x 5830 μm | |
