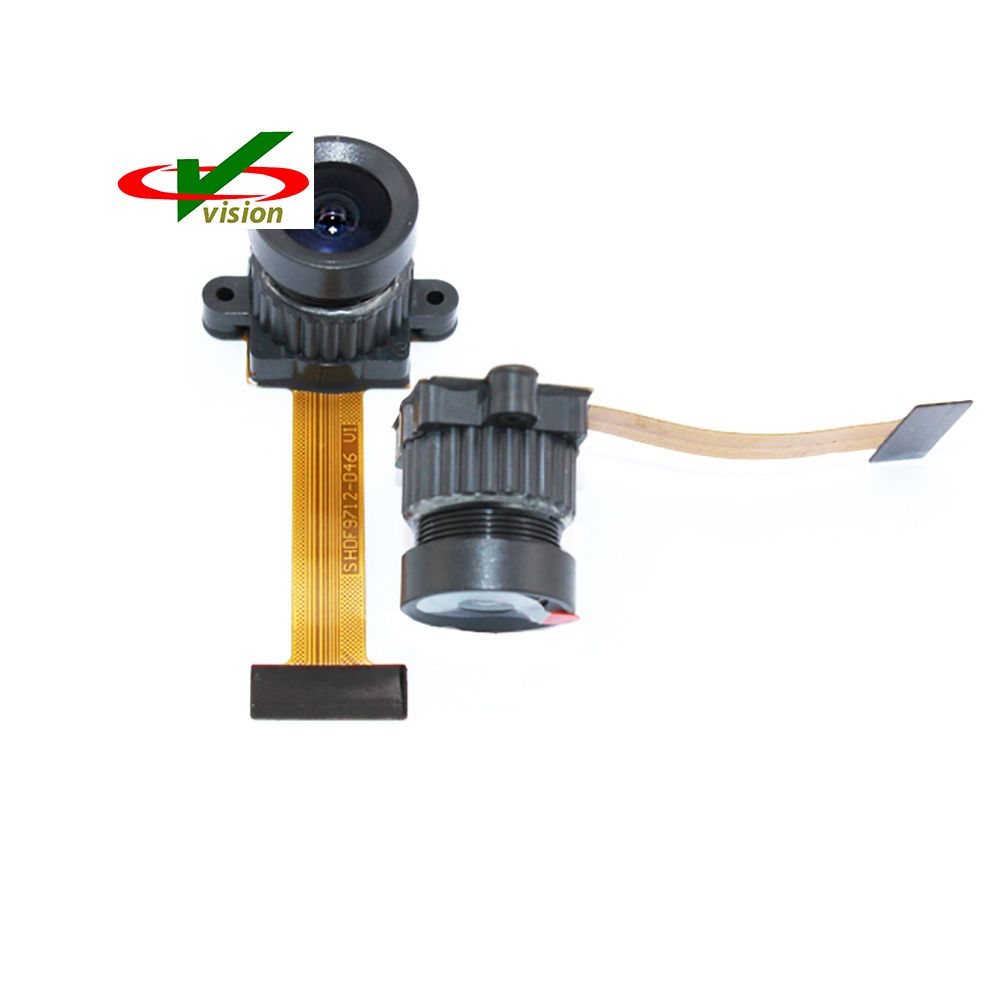

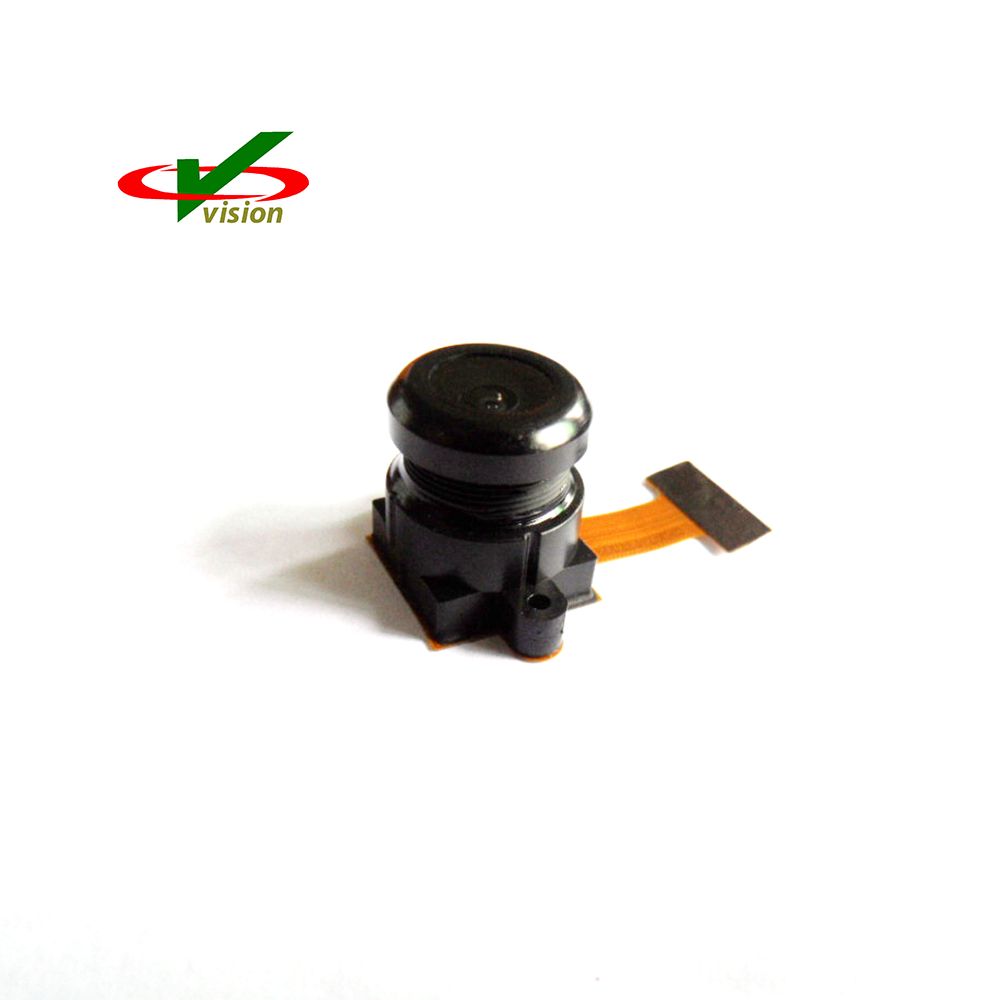

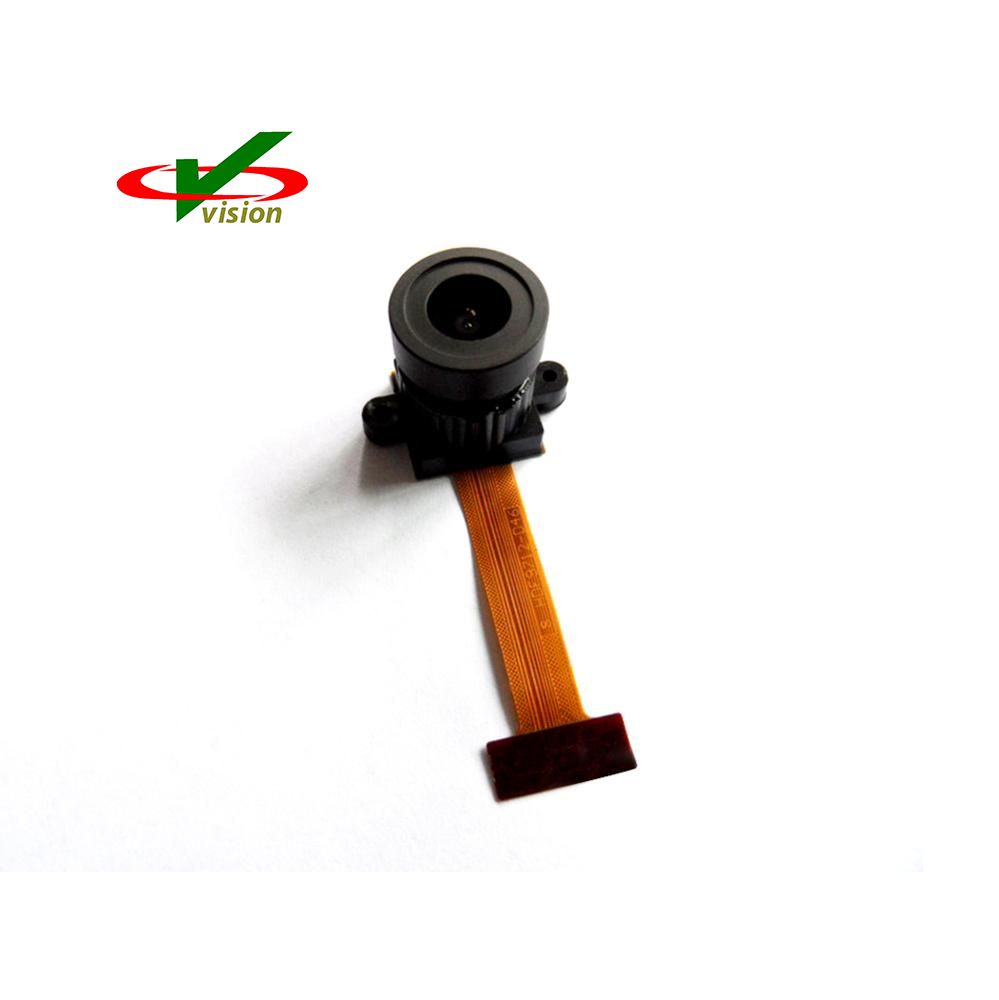

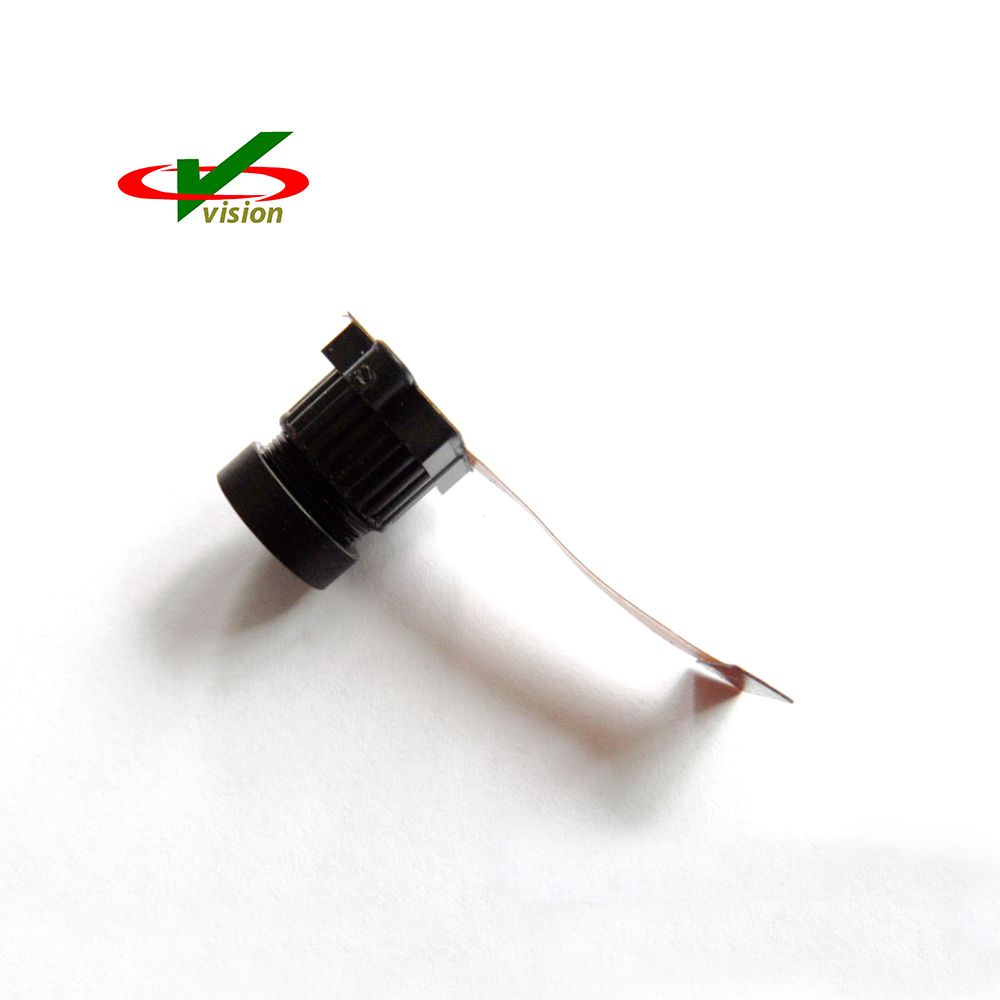

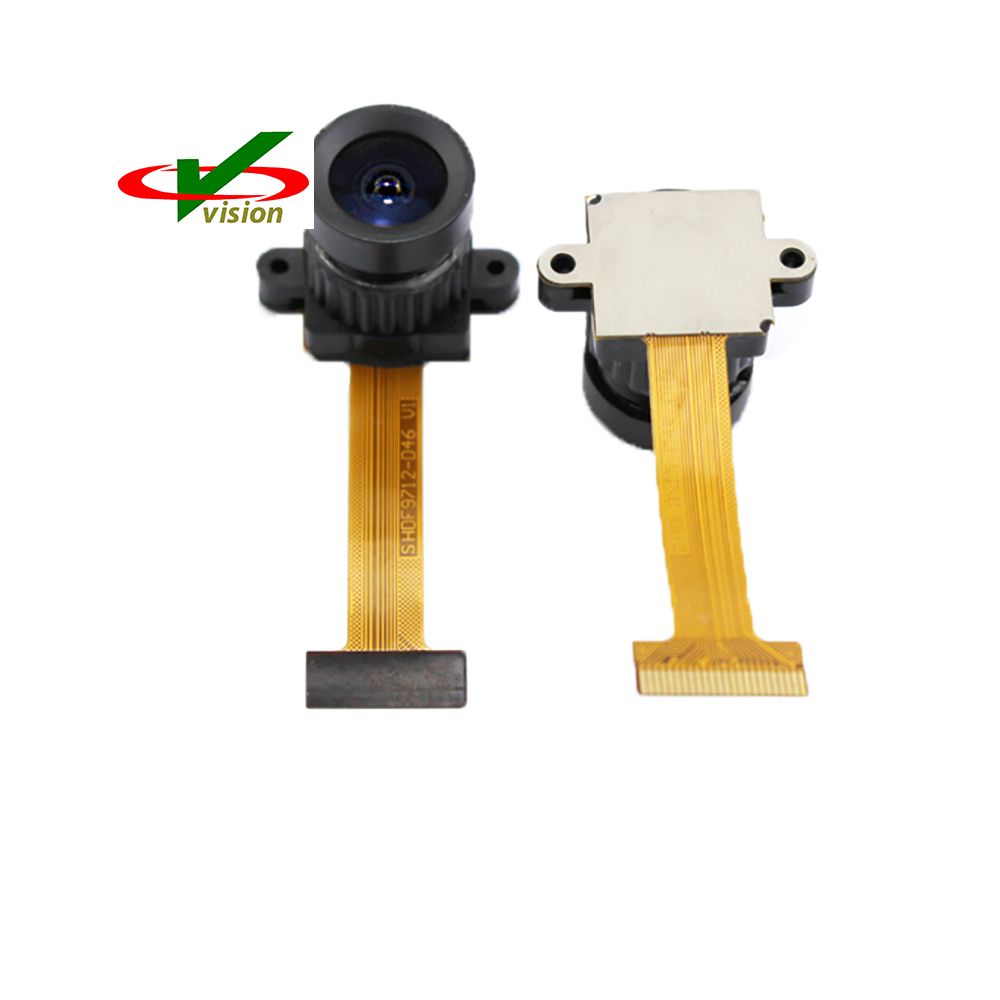

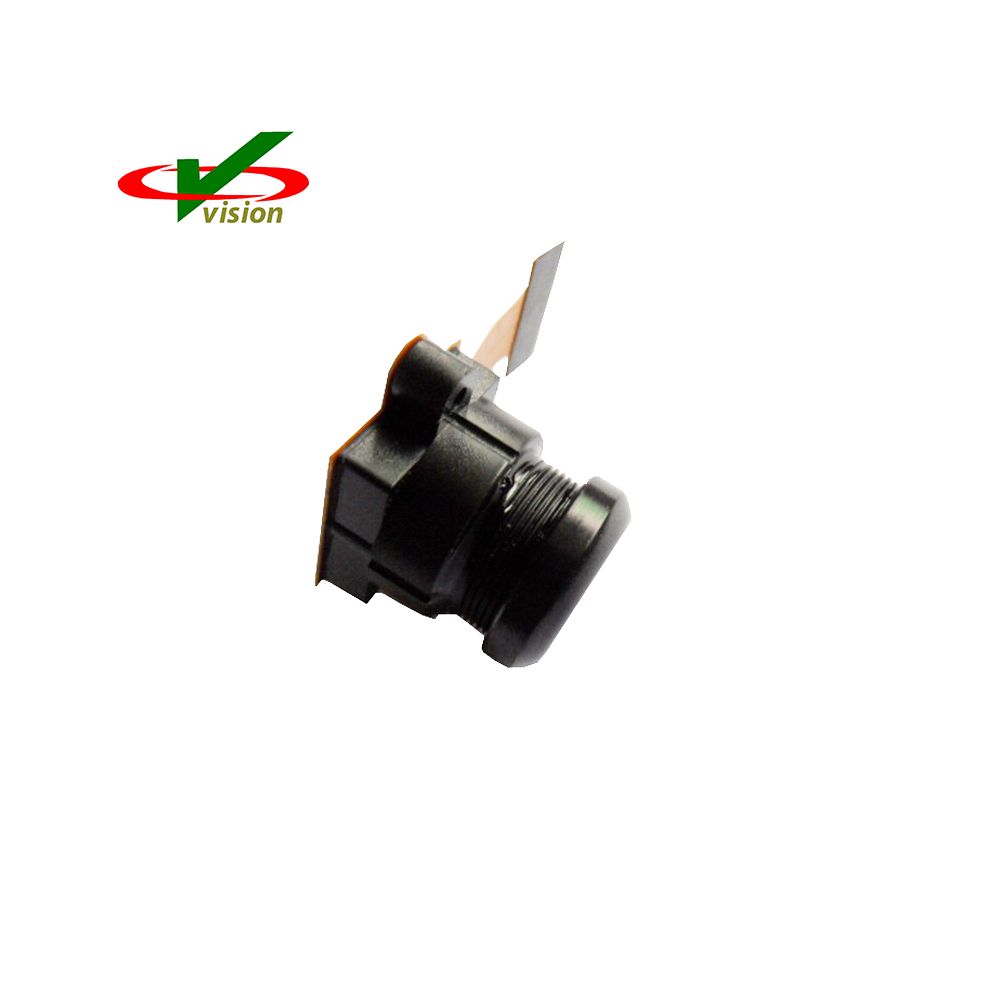

720p OV9732 CMOS Module Camerae

720p OV9732 CMOS Module Camerae Module Features

■Support magnitudines imaginis: plenae magnitudinis (1280x720), VGA (640x480), 2x2RGB binning (640x360)

■Support pro output formats: 10-bit INCOCTUS output cum I-lane MIPI et DVP

■ De-chip tempus cincinno loop (PLL)

Programmable controlla ad ratem machinam, speculum et in flip, lucrum/expositio, et windowing

■ Support pro horizontali et verticali sub-sampling

■ Low potentia modus (LPM) munus

■ Possibile esse conservandi mandare valores in software potentia descendit

■ Latin SCCB interface

■GPIO tri-status configurabilitas et programmabilis verticitas

■FSIN

■Imago qualitas imperii: pixel correctionis defectus (DPC) et calibratio latae nigri gradus (ABLC)

ODM/OEM 720p OV9732 CMOS Module Camerae Key Specifications

1. Active ordinata magnitudine: 1280x720

2. Virtutis copia;

analog: 3.1~3.45V (3.3V normal)

core: 1.7~1.9V (1.8V normal)

I/O: 1.7~1.9V (1.8V normal)

3. Temperature range:

operatio: -30℃ ad 85℃ coniunctas caliditas

stabilis imago: 0℃ ad 50℃ coniunctas caliditas

4. Output formats: X frenum INCOCTUS RGB

5. Lens size: 1/4"

6. Input horologium frequentia: 6~27MHz

7. Maximum Image Transfer Rate: 30fps plena resolutio

8. foriculae: volvens Lorem

9. Pixel size: 3μm x 3μm

10 Imago area: 3888μm x 2208μm
