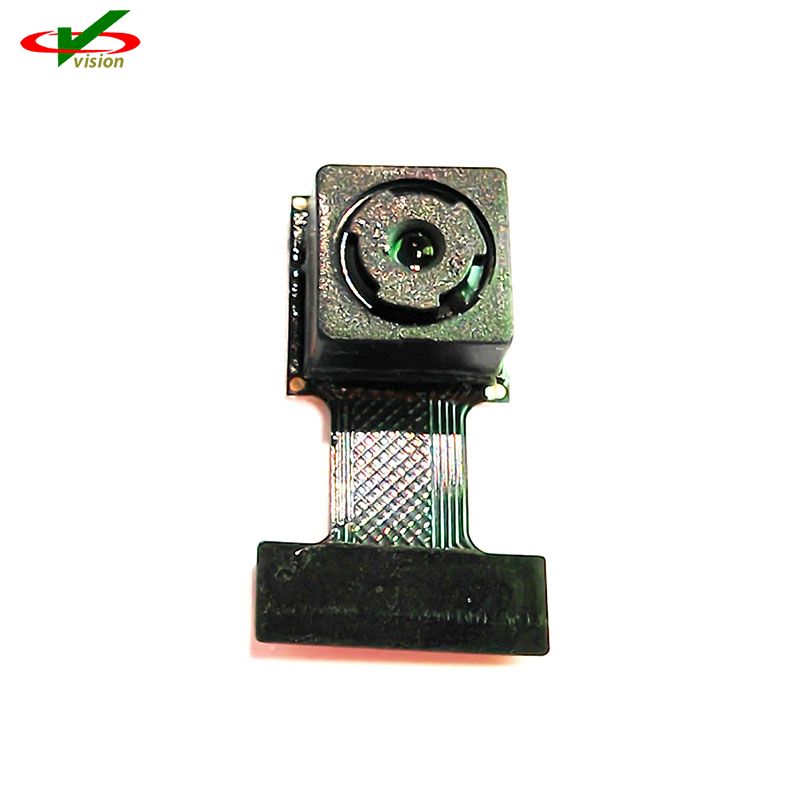

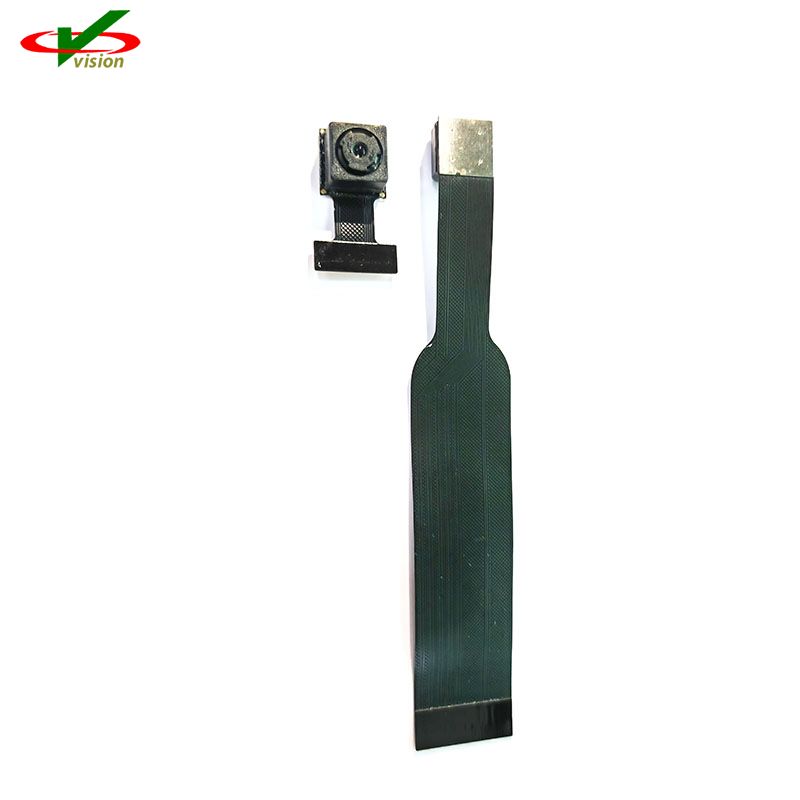

Auto Focus Fixed Focus OV8856 CMOS Sensor Camera Module

Omnivisionis Auto Focus Focus fixa OV8856 CMOS Sensor Camera Module novum est 1/4inch 8mega pixel PureCel sensorem designatum ante et postico contra applicationes camerae in mobilibus artibus amet.

Focus auto- umbilicus fixus OV8856 CMOS sensoris camerae moduli est unus sensoriis minimi 8megapixel in foro, et circiter XV centesimis minor est quam priorem generationis ov8856 imaginum sensorem Omnivisionis. Ov8856 aptare potest in 6.5mmx6.5mm umbilicum fixum moduli cum z-altitudine 4mm circiter.

Auto Focus Fixarum Focus OV8856 CMOS Sensor Camera Module Main Specifications

Activa ordinata magnitudine: 3264x2448

Power copia:

analog: 2.6~3.0V (2.8V nominal)

core: 1.14~1.26V (1.2V nominal)

I/O: 1.7~1.9V (1.8V)

potentia requisita:

activae: TBD

sto: TBD

XSHUTDN: 0.3μW

Temperature range:

operans: -30℃ ad +85℃ commissuras temperatus

stabilis imago: 0℃ ad +60℃ coniunctas caliditas

◆  Output interfaces: usque ad 4-lane MIPI Vide output

◆ Output formats: X-bit RGB RAW

◆ Lens size: 1/4"

◆ Input horologium frequentia: 6~27 MHz

Maximum imaginis translatio rate:

3264x2448: 30fps

3264x1836: 30fps

2112x1188: 60fps

1920x1080: 60fps

Scan modus: progressivum

Pixel size: 1.12μm x1.12μm

Imago area: 3678.336μm x 2767.68μm

Omnivision Auto Focus Fixarum Focus OV8856 CMOS Sensor Camera Module Applications

cellulosa phones

PC multimedia

tabulas
