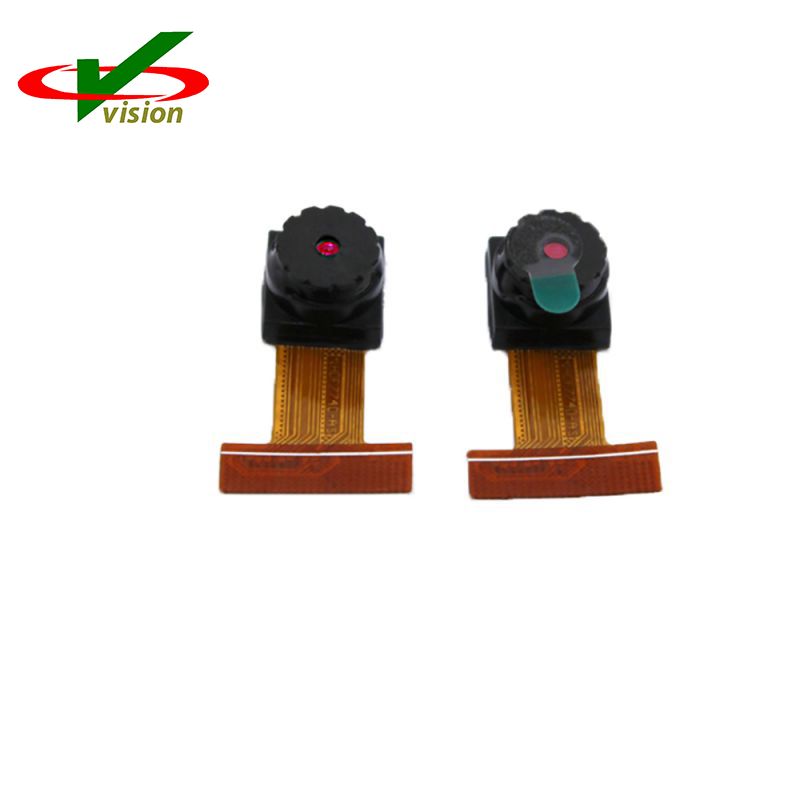

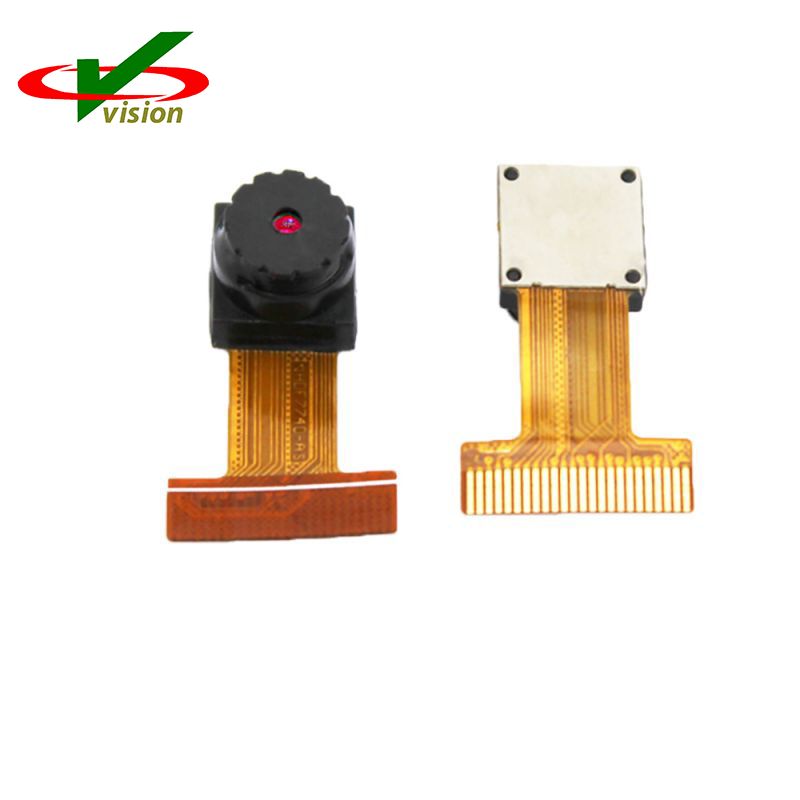

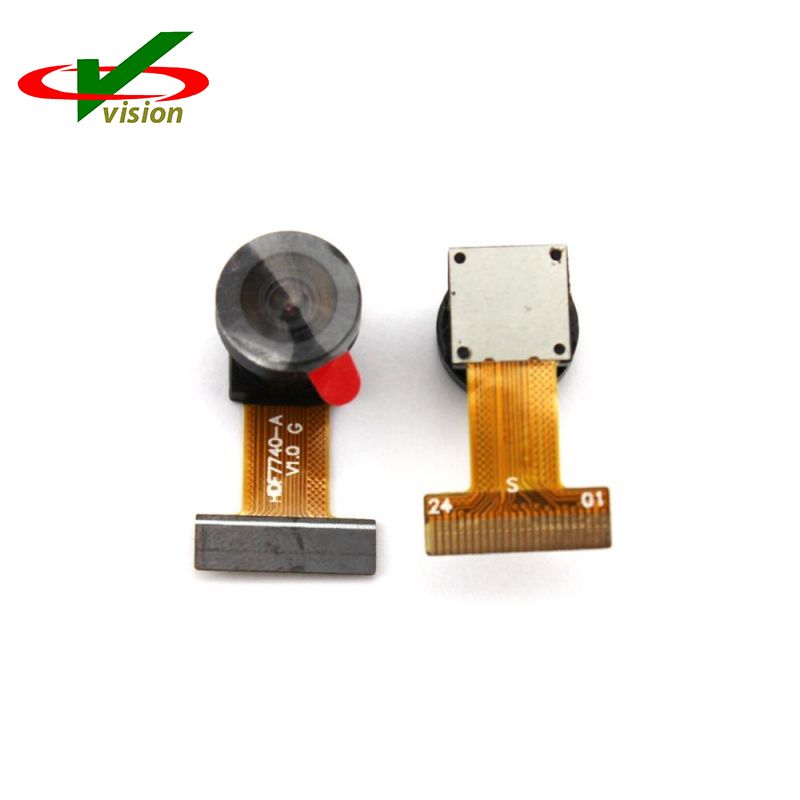

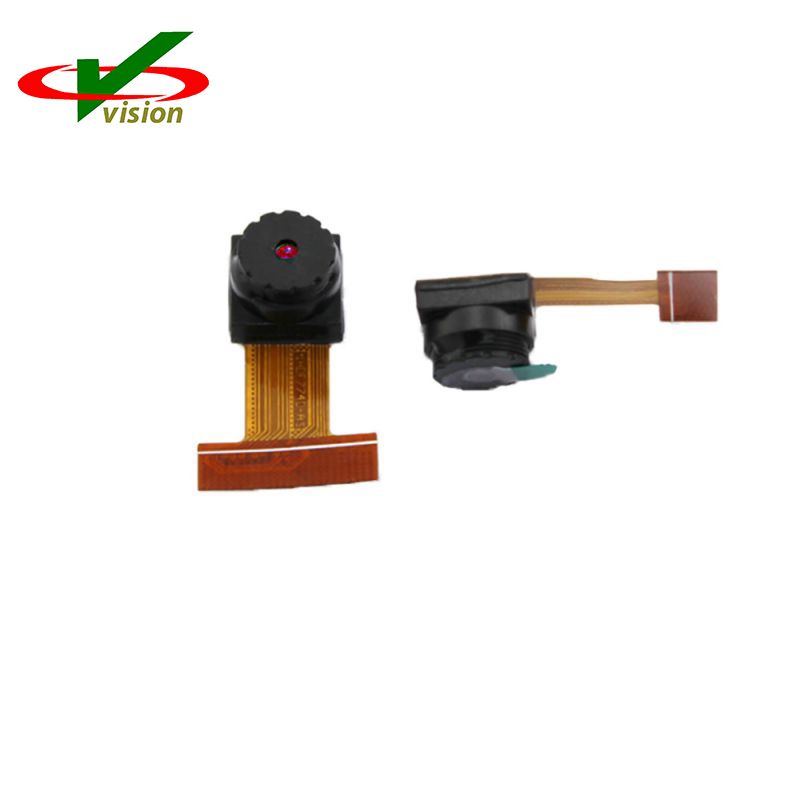

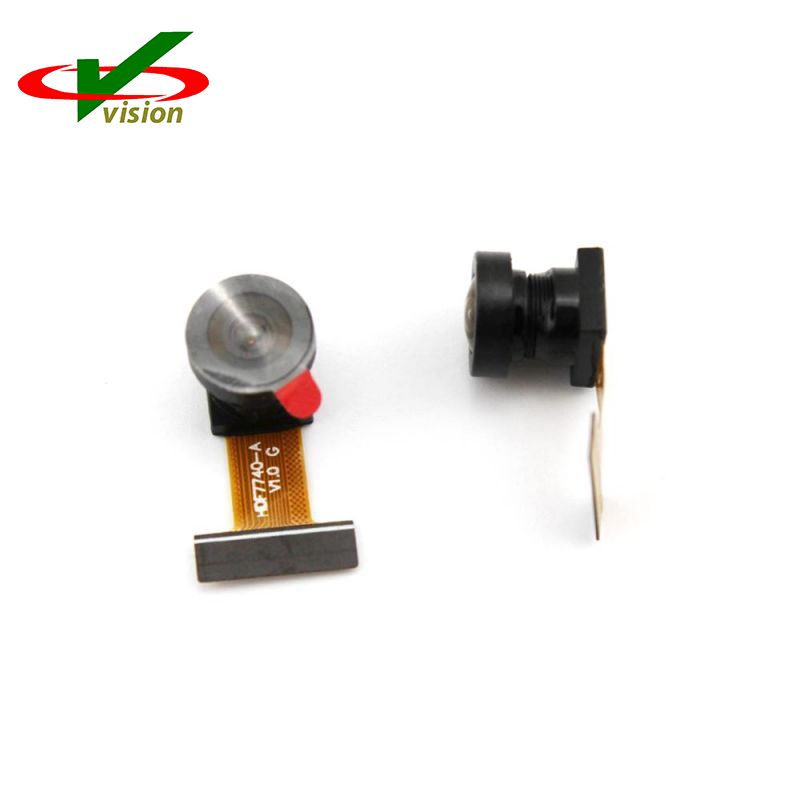

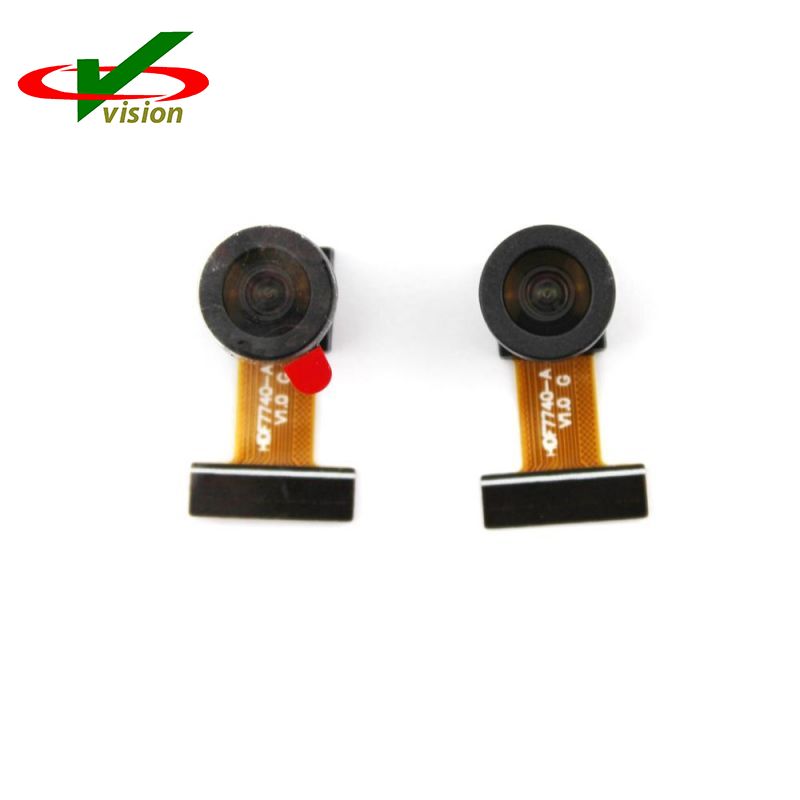

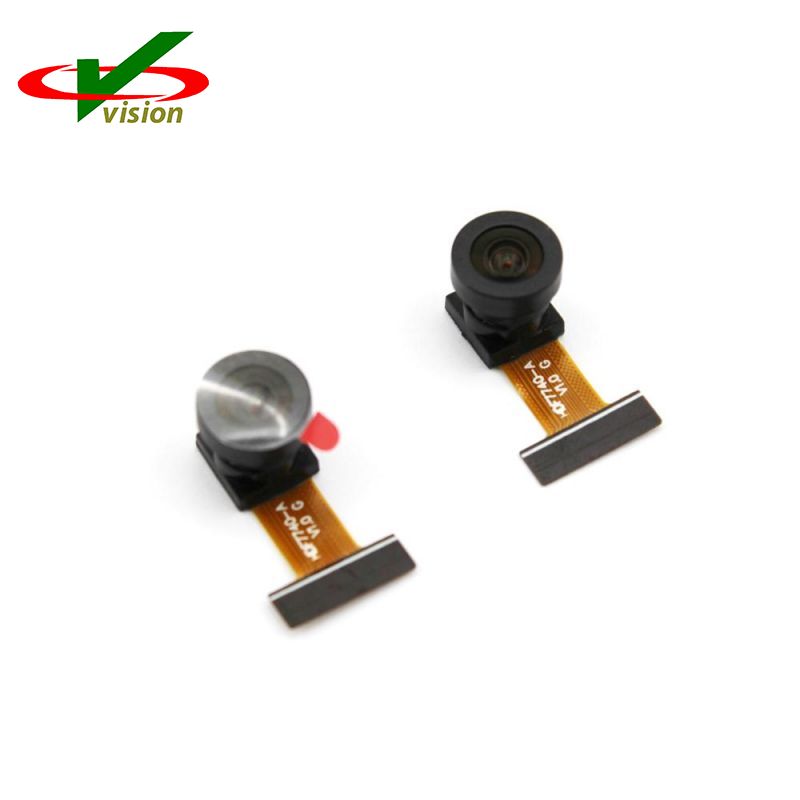

Small Cmos VGA OV7740 Camera Module

Small CMOS VGA O

Small CMOS VGA OV7740 Camera Module video portum parallelum digitali sustinet, et praebet plenas artus, sub-sculptas, fenestras vel scalis 8-bit/X-bit RAW RGB et 8-bit YUV imagines.

640x480 Small CMOS VGA OV7740 Camera Module Features:

1. subsidium output formats: INCOCTUS RGB et YUV

2. Firmamentum magnitudinum imaginum: VGA, QVGA, CIF et cuiuslibet magnitudinis minor

3. subsidium nigrum solem indultum

4. Firmamentum est pro interno et externo membro synchronisationi

Vexillum SCCB Vide interface

6. digital video portum (DVP) parallelum output interface

7. embedded unum tempus programmable (OTP) memoria

8. on-chip phase lock loop (PLL) embedded 1.5 V ordinator for core

24pin Aurum Digitus Small CMOS VGA OV7740 Camera Module key specifications

Array size: 656 x 488

Virtutis copia;

core: 1.5VDC ± 5%

analog: 3.3V ± 5%

I/O: 1.7 ~ 3.47V

Temperatus range:operans: -30° C ad 70°C

Firma imago: 0° C ad 50° C

Output forma: - 8-/10-bit rudis RGB data - 8-bit YUV

Magnitudo Lens: 1/5"

Input horologium frequentia: 6 ~ 27 MHz

Max translationis imago rate:

VGA (640x480): 60 fps

QVGA (320 x 240): 120 fps

sensus: 6800 mV/(Lux-sec)

Maximum exposita intervallum: DII x trow

Magnitudo pixel: 4.2 μm x 4.2 μm

Imago area: 2755.2 μm x 2049.6 μm

Sarcina dimensiones: 4185μmx4345μm
