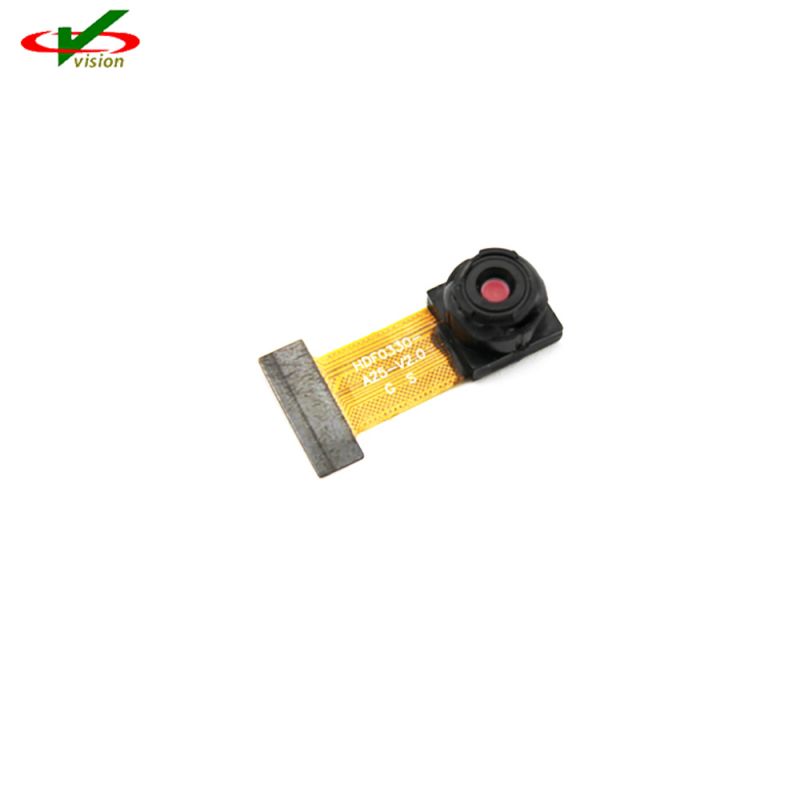

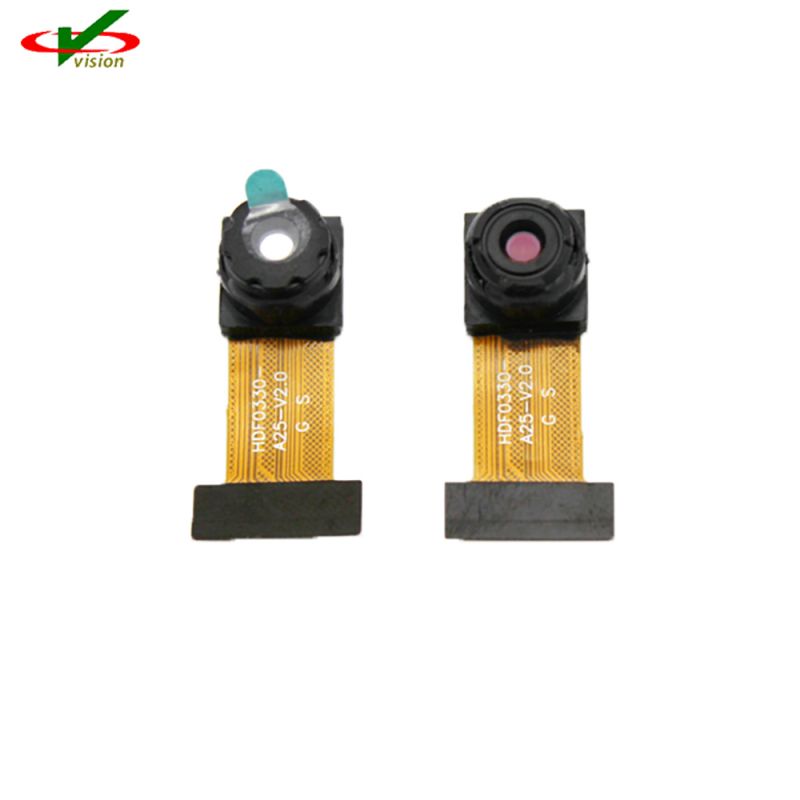

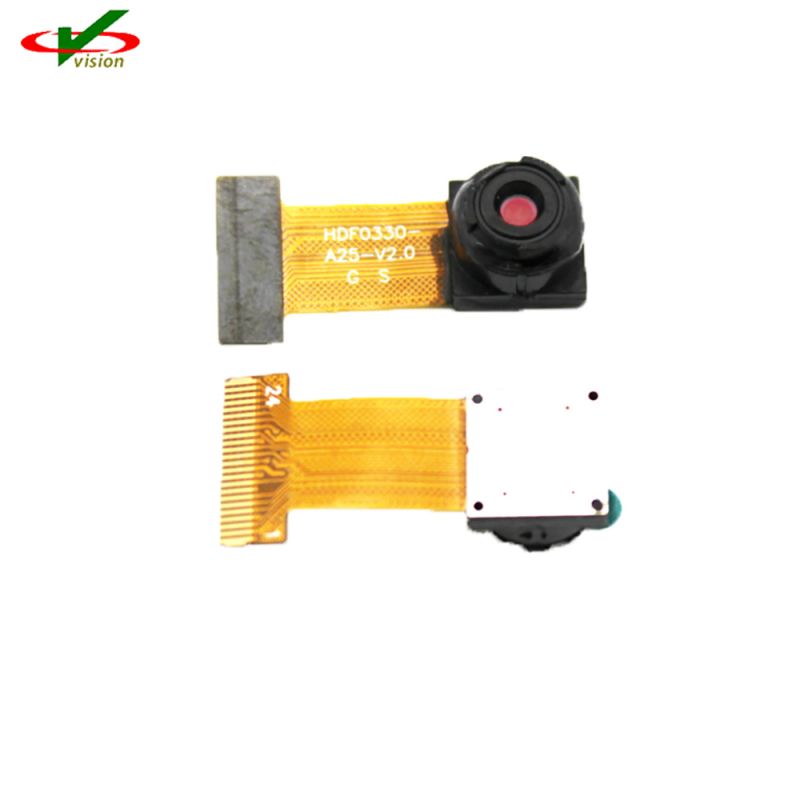

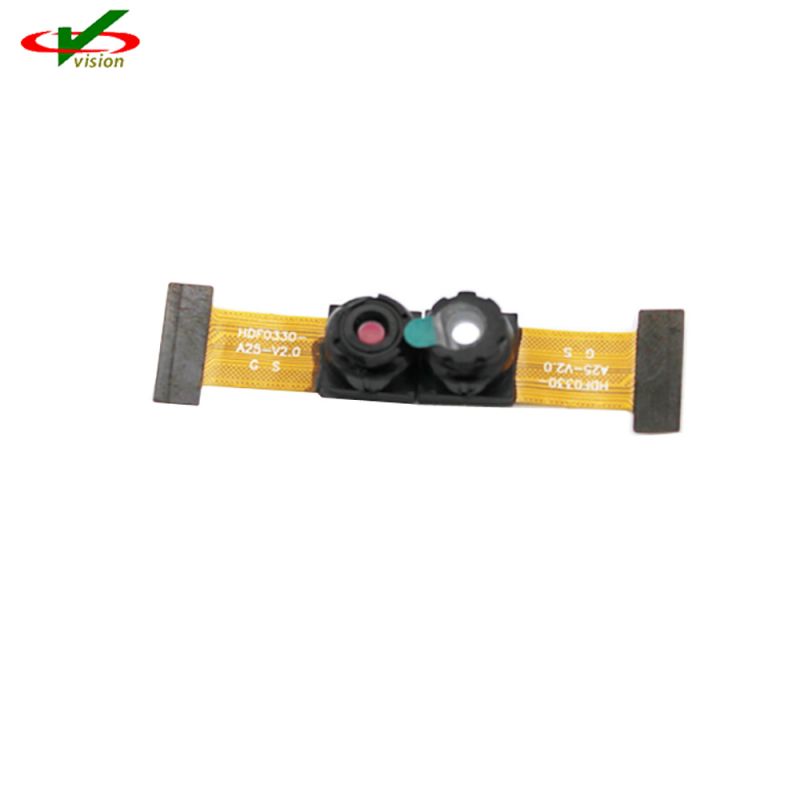

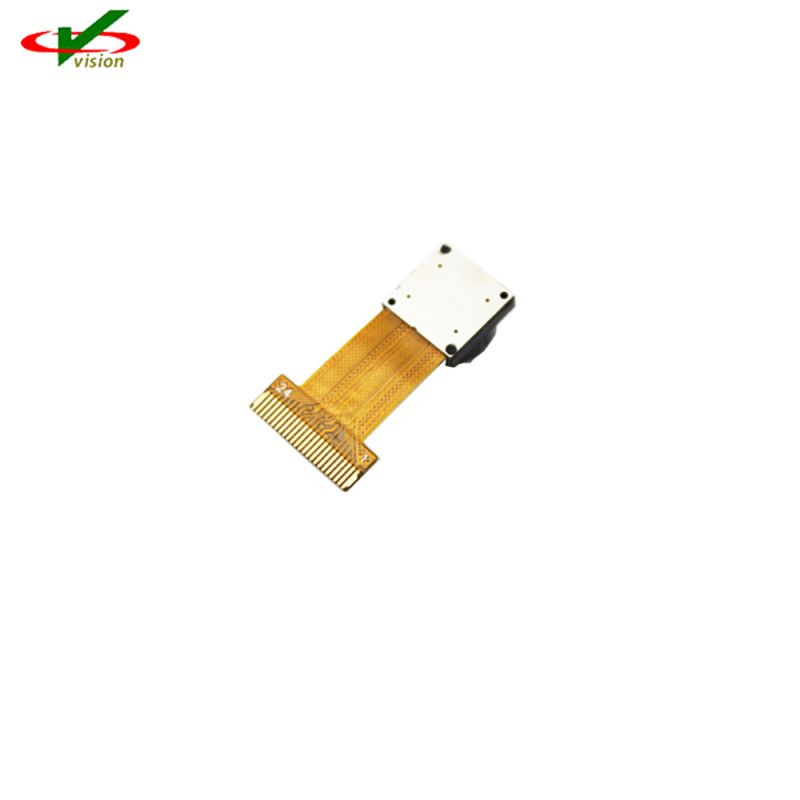

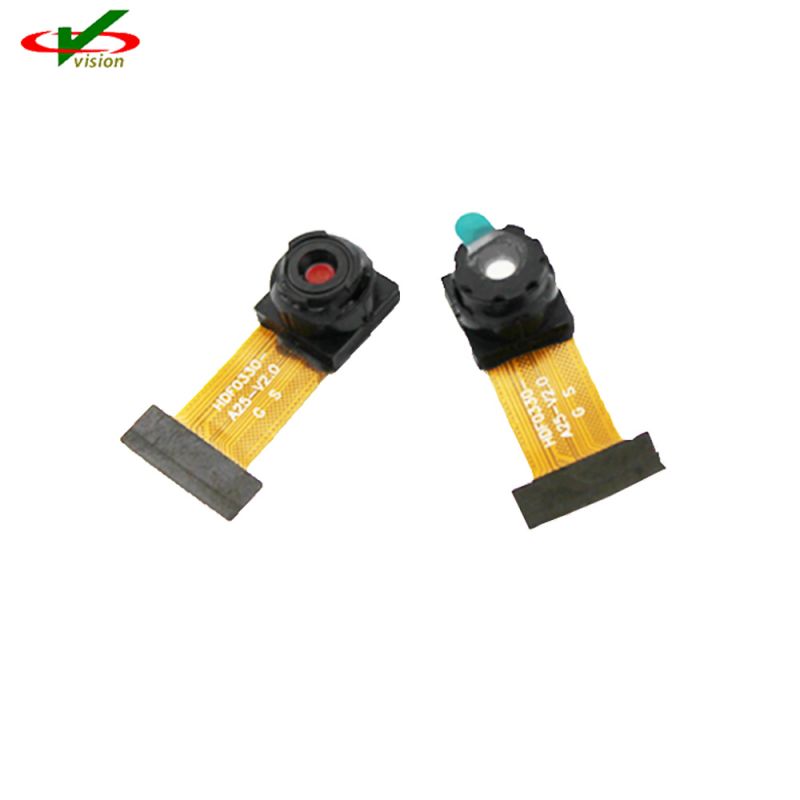

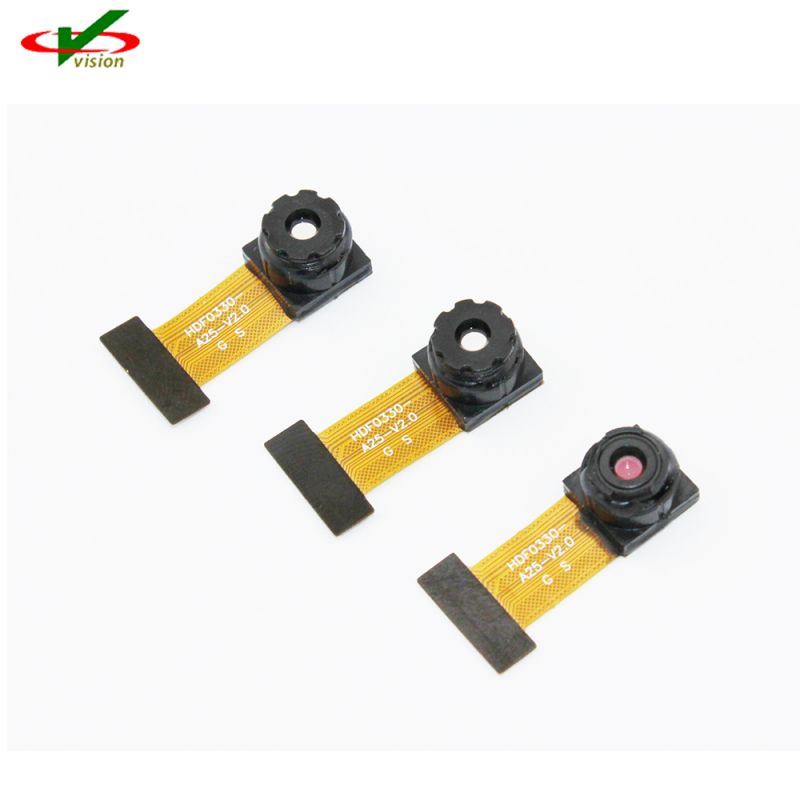

24PIN DVP CMOS Camera Module AR0330 incorporat sophisti in-sculptione camerae functiones obliquas ut modos fenestras, speculum, columnam et ordinem subsampling modos et modos snapshots.
Aptinae 24PIN DVP CMOS Camerae Module AR0330 est 1/3-inch CMOS digitalis imaginis sensoris cum pixel activo ordinata 2304Hx1536V.
24PIN DVP CMOS Camera Module AR0330 sustentare potest 3.15 megapixel (2048H x 1536V) digitalis adhuc imago captae et 1080p30+20% EIS (2304H x 1296V) digitalis videndi modum.
• 1080P 30 summus definitio digitalis video camcorder
• Web cameras et video cameras conferendo
• Securitatis
• 2.2µm pixel cum Aptina™ A-Pix™ technologiae
• Superior humilis-lucis perficientur
• 3.4Mp (3:2) et 3.15Mp (4:3) adhuc imagines
• Support extra mechanica Lorem
• Support externa LED vel Xenon mico
• Data interfaces: duos lane Vide MIPI vel interfaces parallelas
• De-chip phase-clausa loop (PLL) oscillator
• Integrated position-fundatur color et lens frondium correptio
• Simple duos filum Vide interface
• Auto gradu calibratiis nigrum
• 12-ad-10 frenum output A-Lex pressio
• Servus modus ad certum frame-rate imperium et ad duos sensoriis synchronisndos
| Clavis Morbi | Typical Value | ||
| Forma optical | 1/3-inch (6.0 mm) | ||
| Tota ordinata: 6.09mm | |||
| Adhuc Imago: 5.63mm (4:3) | |||
| HD Image: 5.82mm (16:9) | |||
| Active elementa | 2304(H) x 1536(V): | ||
| 5.07mm(H) x 3.38mm(V) | |||
| 2048(H) x 1536(V) (4, 3, adhuc modus). | |||
| 2304(H) x 1296(V) (16:9, mode) | |||
| Pixel magnitudine | 2.2μm x 2.2μm | ||
| Color filter ordinata | RGB Bayer | ||
| Lorem genus | ERS et GRR | ||
| Input horologium range | 6 – 27 MHz | ||
| Output horologium maximum | 98 Mp/s (parallel or 2-lane MIPI) | ||
| Responsivity | 2.0 V/lux-sec | ||
| Potentia consummatio | 1080P30 MIPI Modus: 282mW. | ||
| 1080P30 Parallel Mode: 252mW | |||
| SNRMAX | 39 dB* | ||
| Dynamic range | 69.5 dB | ||
| Copia voltage | I/O/Digital | 1.7-1.9V (1.8V nominal) or 2.4–3.1V (2.8V nominalis) |
|
| Digital | 1.7–1.9V (1.8 V nominalis) | ||
| Analog | 2.7–2.9V | ||
| Operating Temperature (coniunctio) -TJ |
-30°C ad + 70° C | ||
| Sarcina optiones | 6.28 mm x 6.65 mm CSP | ||
