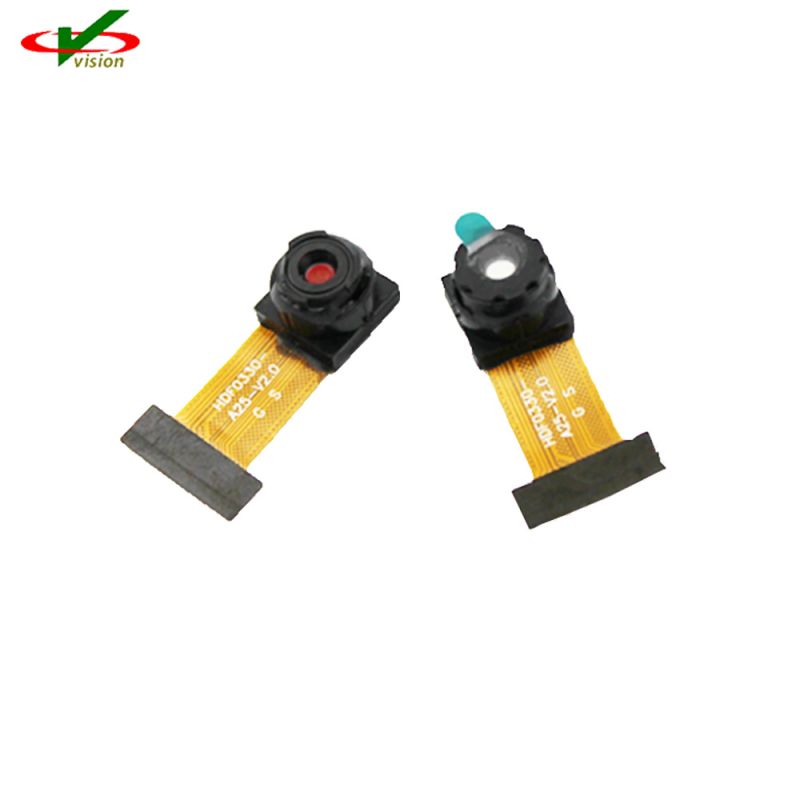

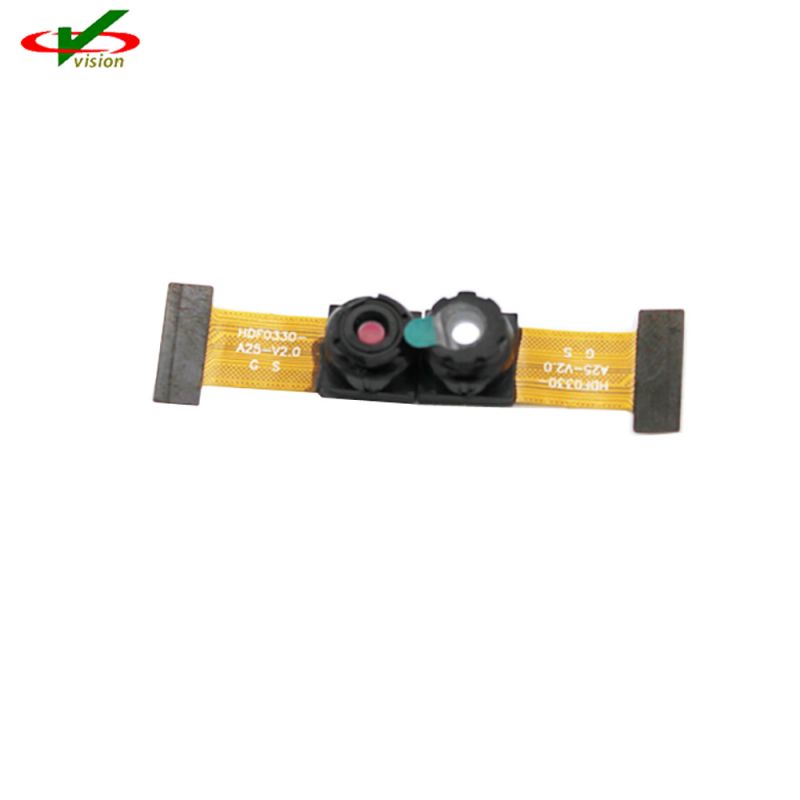

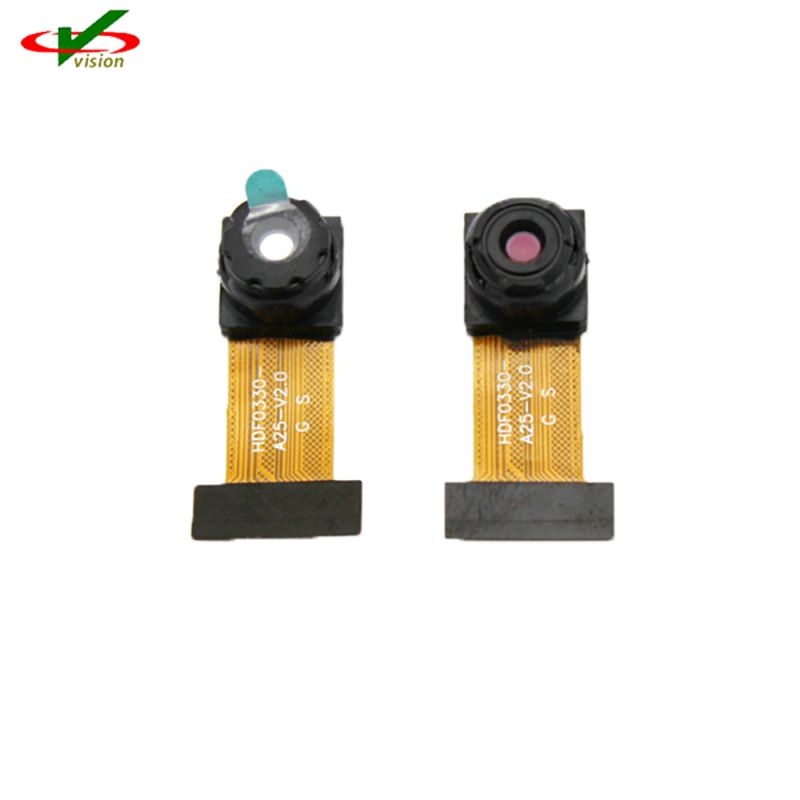

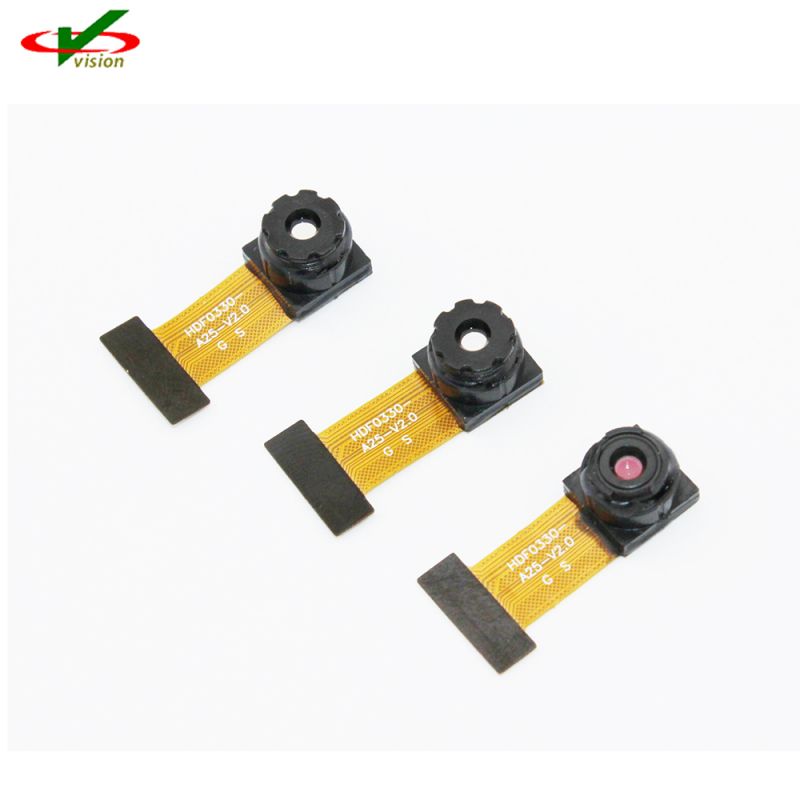

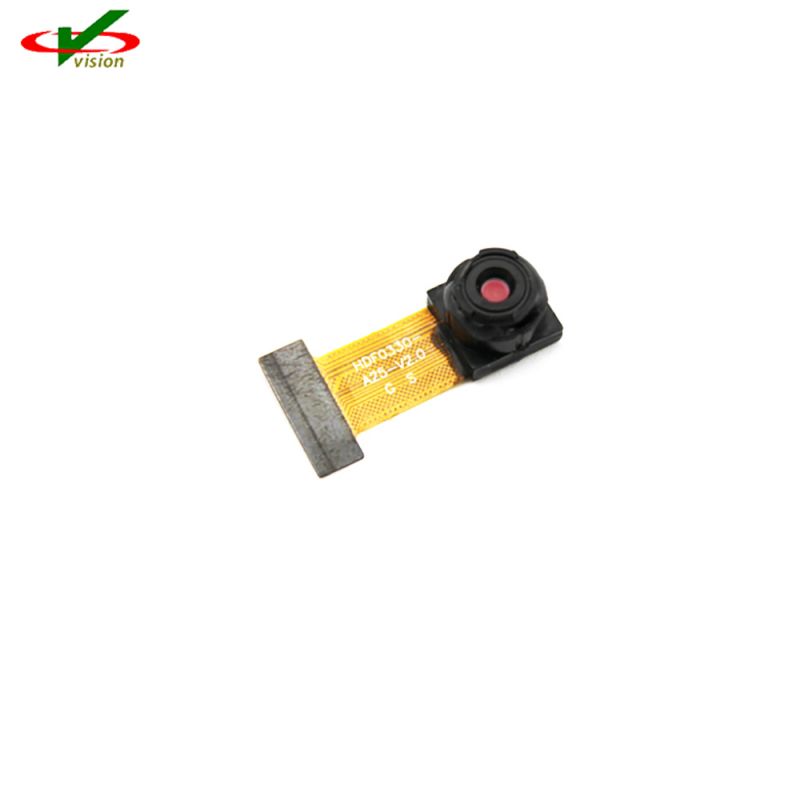

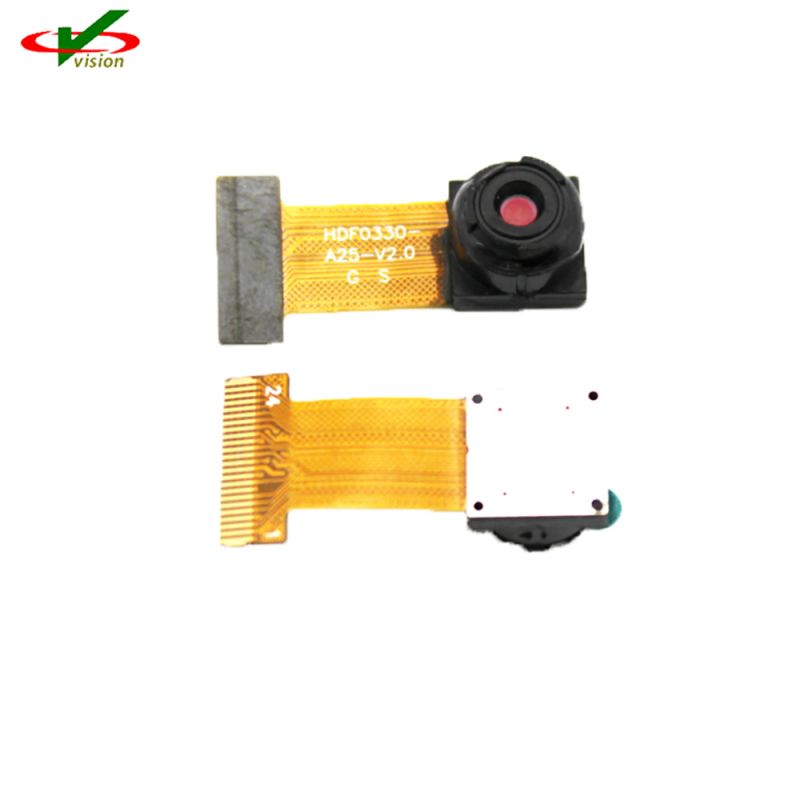

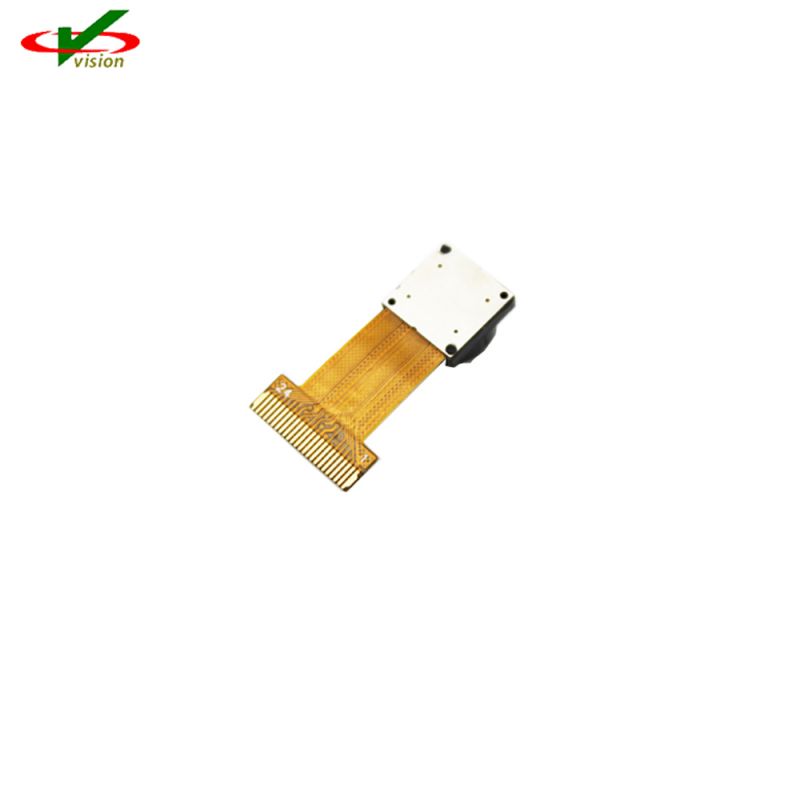

Full-HD Camera Module AR0330 sustentare potest 3.15 megapixel (2048H x 1536V) digital adhuc imago captae et 1080p30+20% EIS (2304H x 1296V) digitalis vide modus.
Aptina's Full-HD Camera Module AR0330 est 1/3-inch CMOS digitalis imago sensoris cum pixel activo ordinata 2304Hx1536V.
Camera plena HD AR0330 Module AR0330 incorporat sophisti camerae asseclae functiones sicut fenestras, speculum, columna et ordo subsampling modos et modos snapshot.
• 2.2µm pixel cum Aptina™ A-Pix™ technologiae
• Superior humilis-lucis perficientur
• 3.4Mp (3:2) et 3.15Mp (4:3) adhuc imagines
• Support extra mechanica Lorem
• Support externa LED vel Xenon mico
• Data interfaces: duos lane Vide MIPI vel interfaces parallelas
• De-chip phase-clausa loop (PLL) oscillator
• Integrated position-fundatur color et lens frondium correptio
• Simple duos filum Vide interface
• Auto gradu calibratiis nigrum
• 12-ad-10 frenum output A-Lex pressio
• Servus modus ad certum frame-rate imperium et ad duos sensoriis synchronisndos
| Clavis Morbi | Typical Value | ||
| Forma optical | 1/3-inch (6.0 mm) | ||
| Tota ordinata: 6.09mm | |||
| Adhuc Imago: 5.63mm (4:3) | |||
| HD Image: 5.82mm (16:9) | |||
| Active elementa | 2304(H) x 1536(V): | ||
| 5.07mm(H) x 3.38mm(V) | |||
| 2048(H) x 1536(V) (4, 3, adhuc modus). | |||
| 2304(H) x 1296(V) (16:9, mode) | |||
| Pixel magnitudine | 2.2μm x 2.2μm | ||
| Color filter ordinata | RGB Bayer | ||
| Lorem genus | ERS et GRR | ||
| Input horologium range | 6 – 27 MHz | ||
| Output horologium maximum | 98 Mp/s (parallel or 2-lane MIPI) | ||
| Responsivity | 2.0 V/lux-sec | ||
| Potentia consummatio | 1080P30 MIPI Modus: 282mW. | ||
| 1080P30 Parallel Mode: 252mW | |||
| SNRMAX | 39 dB* | ||
| Dynamic range | 69.5 dB | ||
| Copia voltage | I/O/Digital | 1.7-1.9V (1.8V nominal) or 2.4–3.1V (2.8V nominalis) |
|
| Digital | 1.7–1.9V (1.8 V nominalis) | ||
| Analog | 2.7–2.9V | ||
| Operating Temperature (coniunctio) -TJ |
-30°C ad + 70° C | ||
| Sarcina optiones | 6.28 mm x 6.65 mm CSP | ||
• 1080P 30 summus definitio digitalis video camcorder
• Web cameras et video cameras conferendo
• Securitatis
