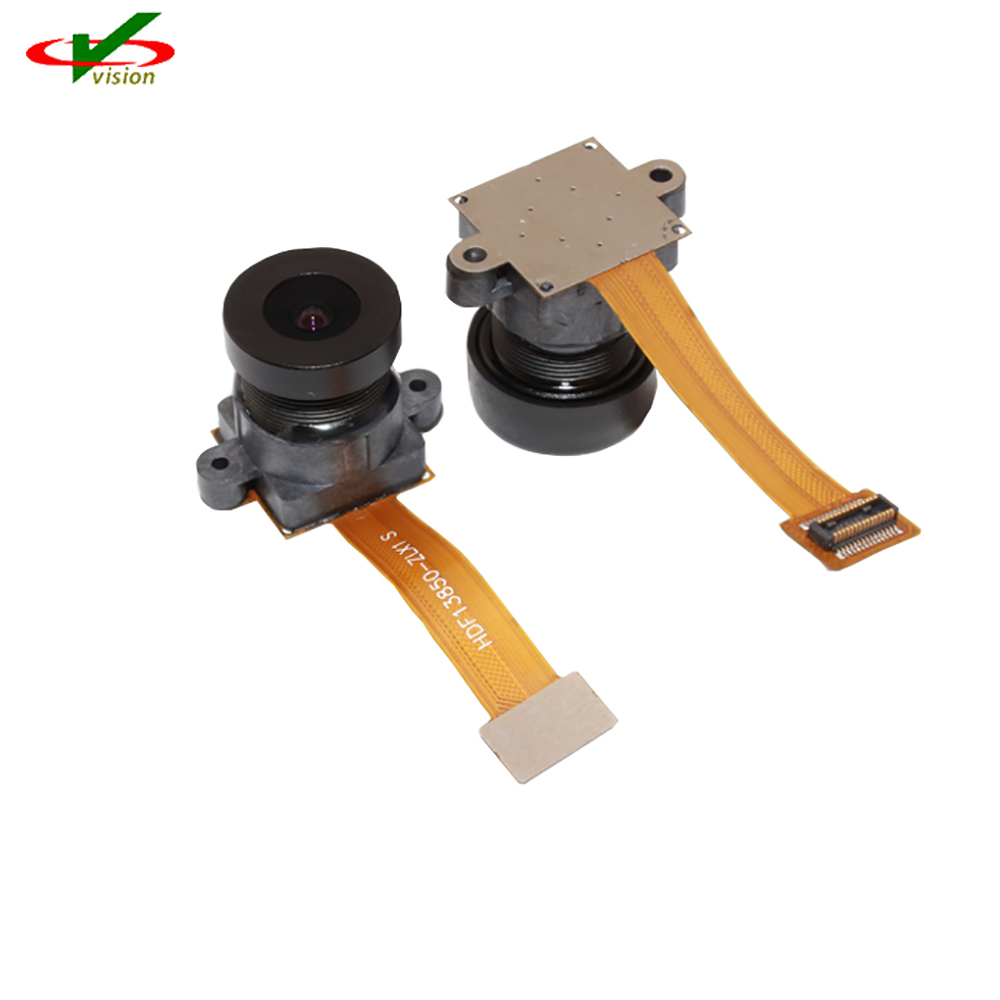

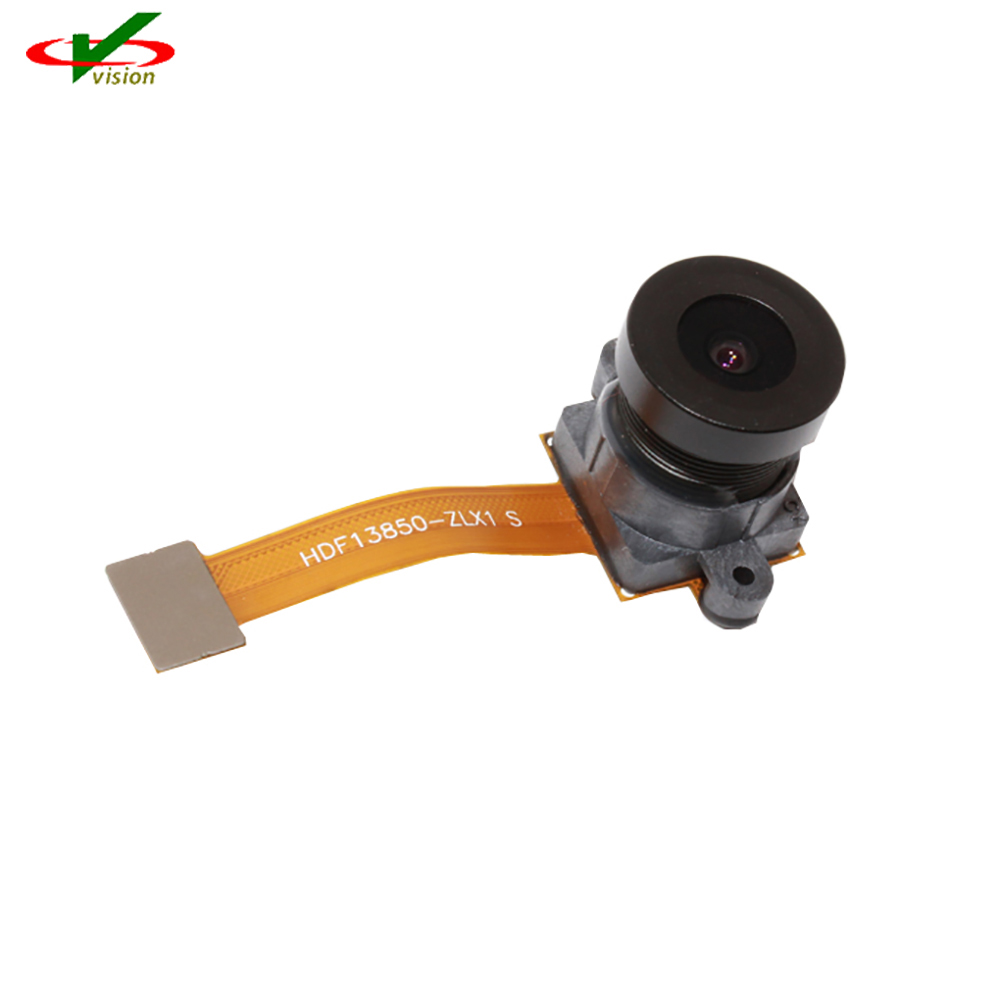

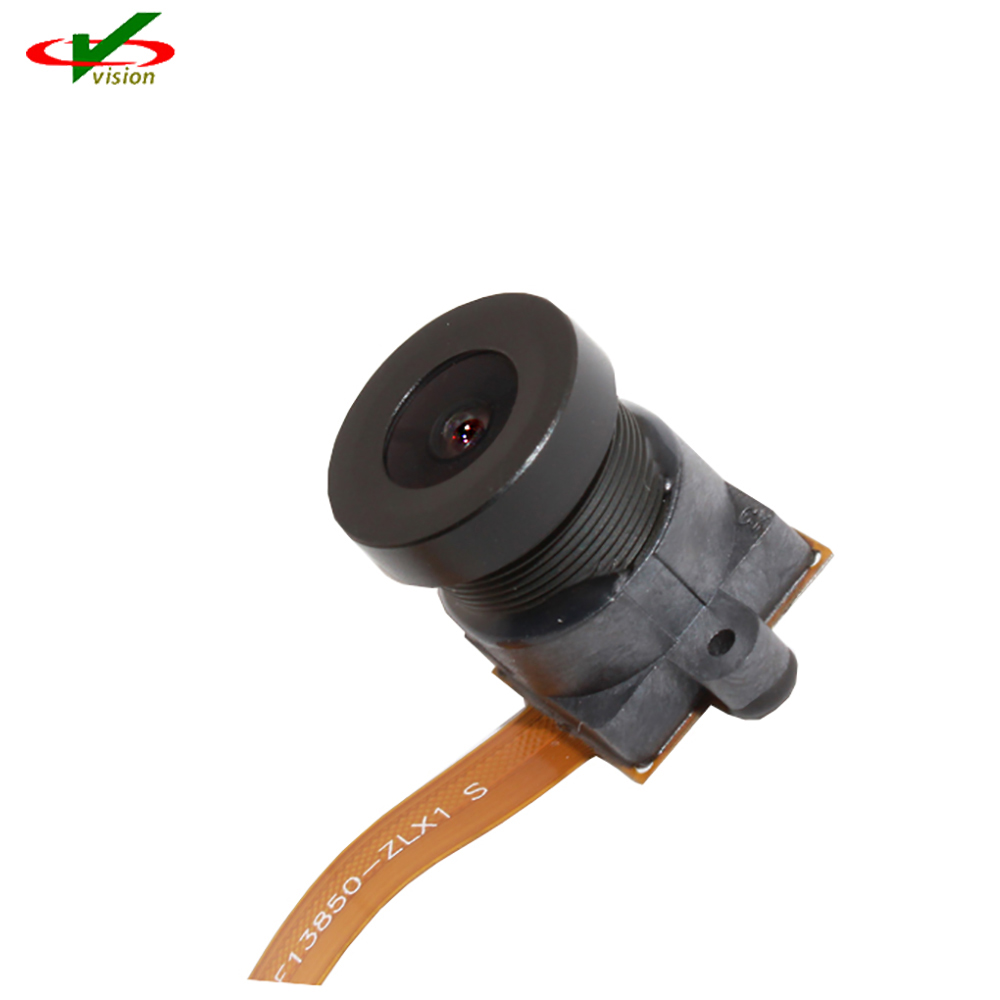

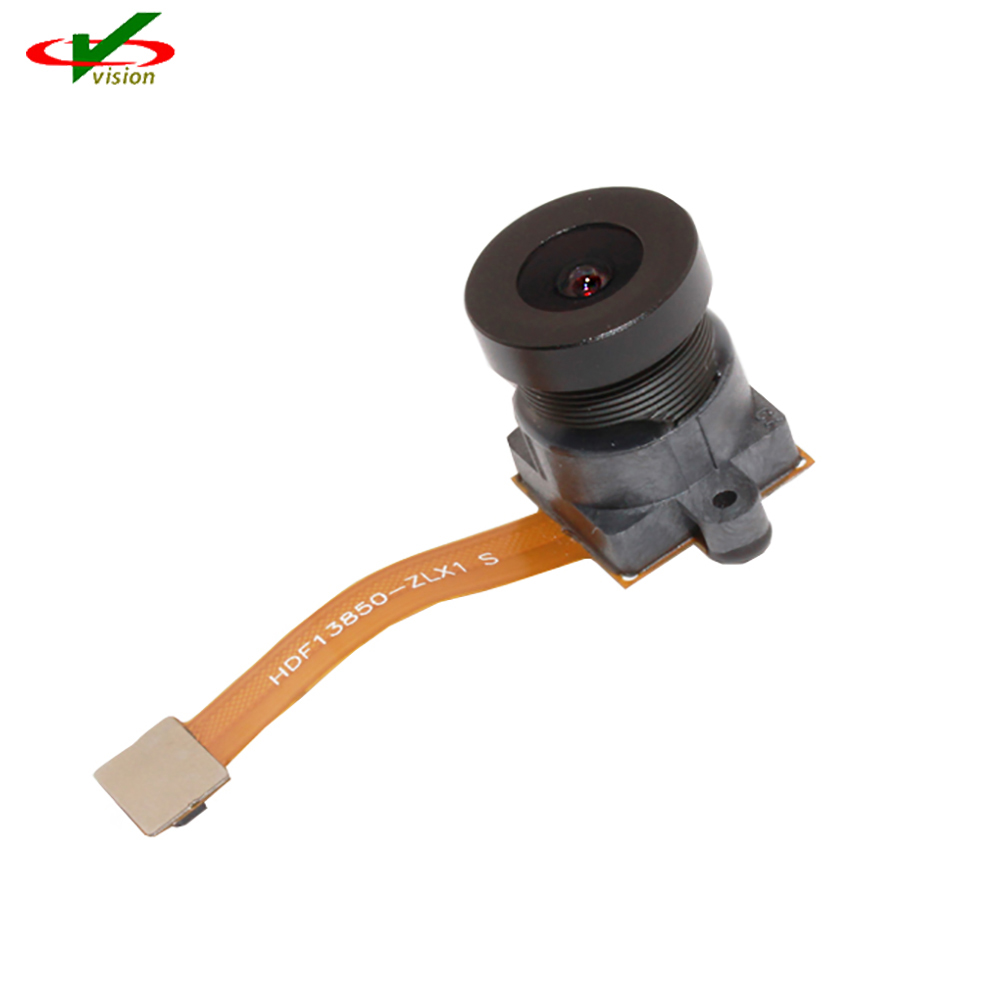

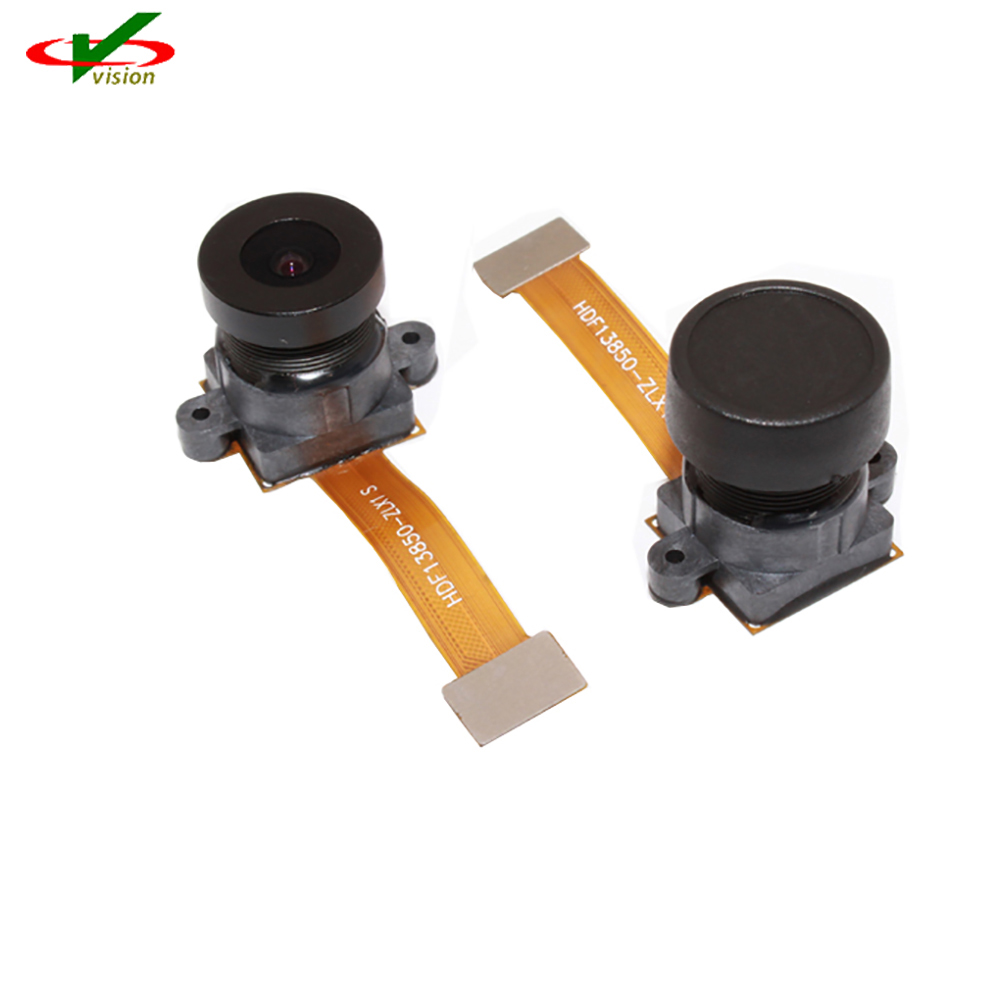

OV13855 OV13850 CSI MIPI HD Camera Module operatur ad 30 tabulas per secundam (fps) ad nullas claudendas pigritias et inconsutilis transitus inter video memorias et adhuc imagines. Accedit, sensorem sustinet 4K2K ultra altam definitionem video in 30 fps cum campi conspectui plenae horizontalis (FOV) et imaginis electronicae stabilizationis (EIS).
Low-Power OV13855 OV13850 CSI MIPI HD Camera Module Liberat Optimum-in-Class Maximum et Maximum lumen euismod.
The 1/3.06inch OV13850 sustinet aciem activam ex 4224 x 3136 pixels (13.2‑megapixels).
OV13855 OV13850 CSI MIPI HD Camera Module etiam sustinet altam ratem 1080p HD video in 60 fps cum EIS ut altam qualitatem recordationem vide. Praeterea, OV13850 leo pro magno range dynamica (HDR) sustinet in 1080p HD modum video in 30 fps.
"Active ordinata magnitudine: 4224x3136"
Power copia:
analog: 2.6~3.0V (2.8V nominale)
core: 1.14~ 1.26V (1.2V nominale)
I/O: 1.7~3.0V (1.8V vel 2.8V nominalis)
potentia requisita:
active: 223mW
sto: 300μW
XSHUTDN: 1μW
Temperature range:
operans: -30℃ ad 85℃ confluentes temperatus
stabilis imago: 0℃ ad 60℃ coniunctas caliditas
● Output interfaces: usque ad 4-lane MIPI Vide output
● Output formats: X-bit RGB RAW
Lens size: 1/3.6"
● Input horologium frequentia: 6~64 MHz
● Lens principalis angulus radius: 31.2°
Pixel size: 1.12μm x1.12μm
Imago area: 3678.336μm x 2767.68μm
